NT Series, Analog, Portable 2-Way Radios
NT Series, Analog, Portable 2-Way Radios

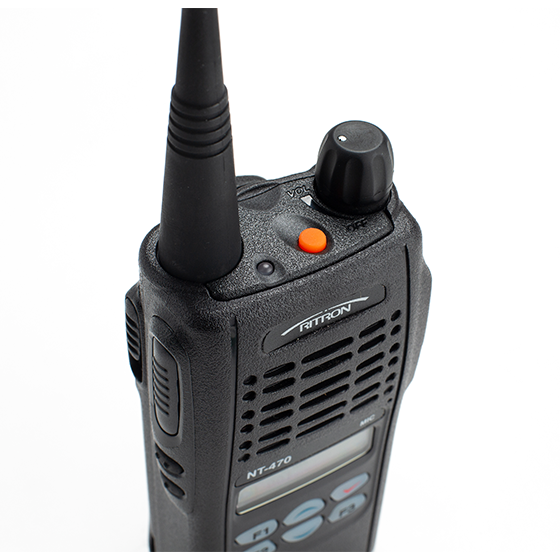

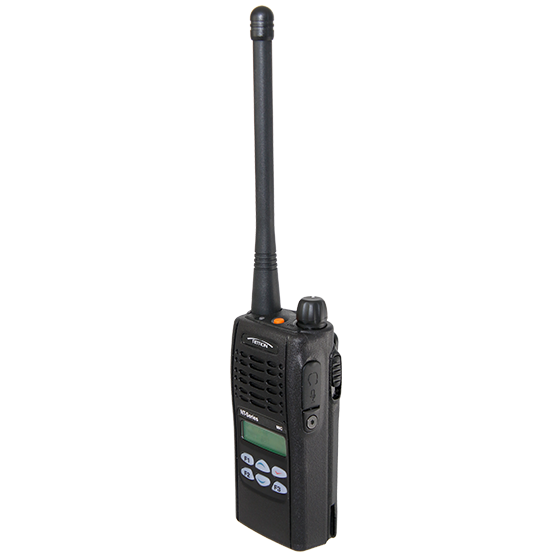

The The NT Series is a full-featured, lightweight and compact analog portable 2-way radio. Tough and reliable – Certified to Mil-Standard 810F and IP65 rating. Ideal for basic job site applications to in-plant repeater systems and selective signaling applications.
- Analog, Narrow Band
- VHF MURS, 2 Watt, License-Free, 5 Frequencies
- VHF, 5/1 Watt, 136-174MHz, License-Required
- UHF, 4/1 Watt, 403-470MHz, License-Required
- 255 Channels
- Small size: 4.5″ H x 2.2″ W x 1″ D

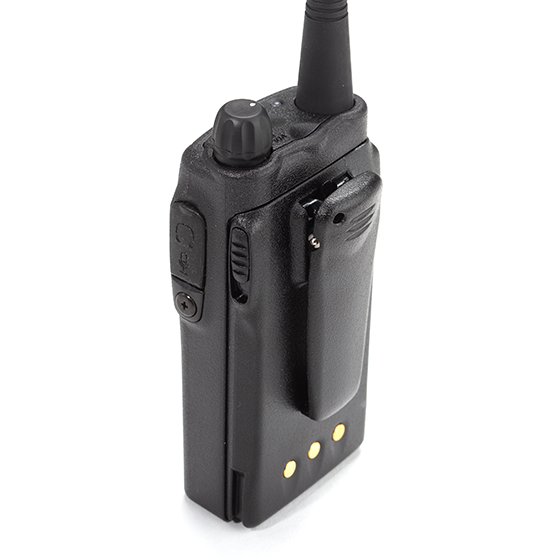

NT Series Radios Include: audio accessory jack, 1800mAH Li-Ion battery, flex antenna, spring-action belt clip, 3-hour charging stand, 110-220VAC adaptor, and 1 year warranty.
Models include:
- NT-152M VHF MURS, 5 Frequencies, 2 Watt
- NT-174 VHF, Part 90, 136-174MHz, 5 Watt / 2 Watt
- NT-470 UHF, Part 90, 403-470MHz, 4 Watt / 2 Watt
Regulatory Approvals:
NT-152M, VHF MURS FCC Part 95
NT-174 VHF, NT-470 UHF, FCC Part 90
NT-174-CANADA, VHF and NT-470-CANADA, UHF – ISED Industry Canada Approved
- Analog, Narrow Band Capable
- VHF, 5/1 Watt, 136-174MHz
- UHF, 4/1 Watt, 403-470MHz
- Narrow Frequency Channel Steps
- VHF: 2.5/12.5 KHz
- UHF: 2.5/6/25/12.5KHz
- 255 Channels
- Small size: 4.5″ H x 2.2″ W x 1″ D
(Same size and weight as PT Series) - Weight w/ Battery: 10oz
- 13 Hour Battery Pack with Low Battery Alert
- Alphanumeric Backlit Dot Matrix 15 Character Display
- MILITARY STANDARD Rating:
- 810F Temperature/Humidity/Shock/Vibration
- INGRESS PROTECTION Rating:
- IP65 Certified Resistance to Water/Dust
- 6 Programmable Function Buttons (PFB)
- Channel Scan – Priority and Normal
- Loud Audio Output – 1000mW
- CTCSS/DCSS Encode/Decode
- Selective Signaling Encode/Decode:
- DTMF, Selcall and 2-Tone (300-3000Hz)
- Radio Status Icons
- Scrambler – Voice Inversion
- VOX Capability
- 2 Pin Audio Accessory Jack
- *NT-PCPS-1 PC Programming Software only
- *NT-PCPK-1 Kit, PC Programmer software & cable (#214BE001)
- AF-X155s-PT Antenna, Optional, VHF, Stubby, 3.5”, SMA, 150-162MHz
- AF-X155-PT Antenna, STD, VHF, Replacement, 6”, SMA, 150-160MHz
- AF-X460-PT Antenna, STD, UHF, Replacement, 6”, SMA, 460-470MHz
- BP-PT18-L Replacement, Rechargeable Battery Pack, Lithium-Ion, 1800mAh w/ Belt-Clip
- CB-PT Replacement, spring-action belt clip
- NH-PT Nylon Holster, with Built-In Metal Belt Clip
- BC-PT Replacement, drop-in charging stand (no AC adaptor 40000001 included)
- 40000001 Replacement, 110-220V AC adaptor for drop-in charging stand
- BC-6PTKIT 6 Gang Charger Kit, (does NOT include 6 NT charging stands), with power supply
- 214BE001 USB-to-Radio connector for PC Programming cable only
Audio Accessories – All NT Series audio accessories require a 2 pin connector (same as CLS)
- *RHD-16X Ear loop with PTT button and in-line microphone, 2 pin connector
- *RSM-10X Speaker microphone with swivel spring action clip, coiled cord, 2 pin connector
Note: *Audio Accessories are DIFFERENT from the PT Series portable radios.
