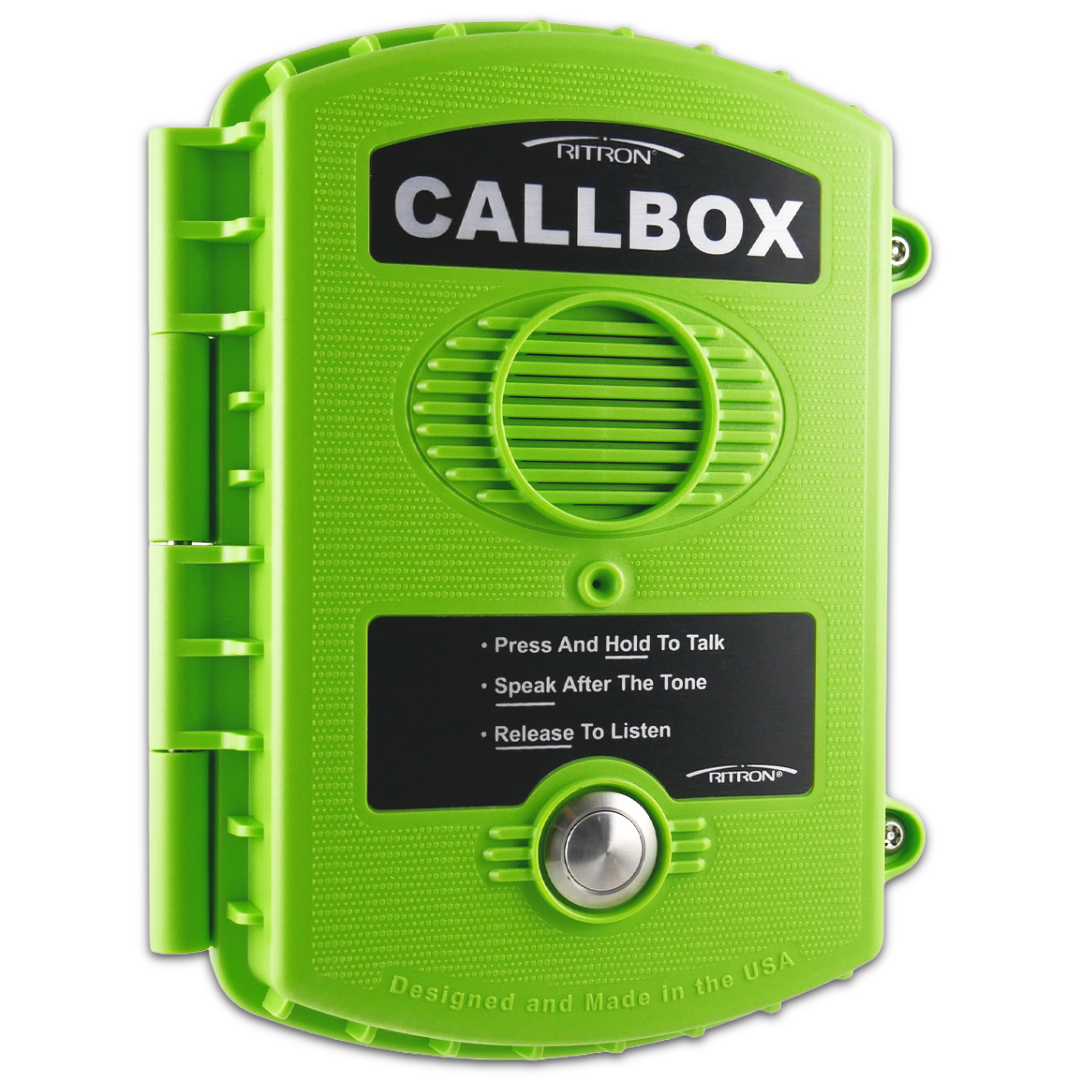

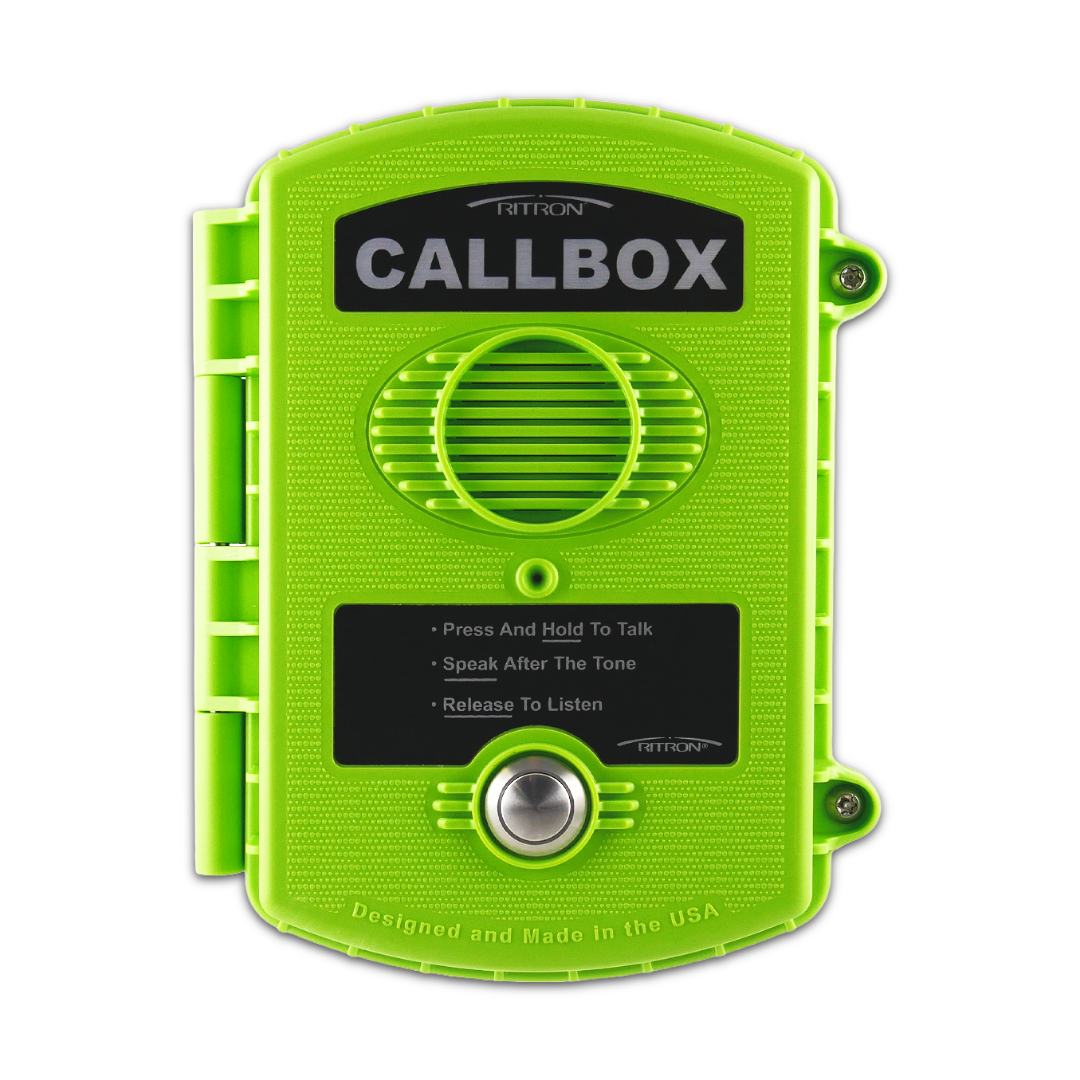

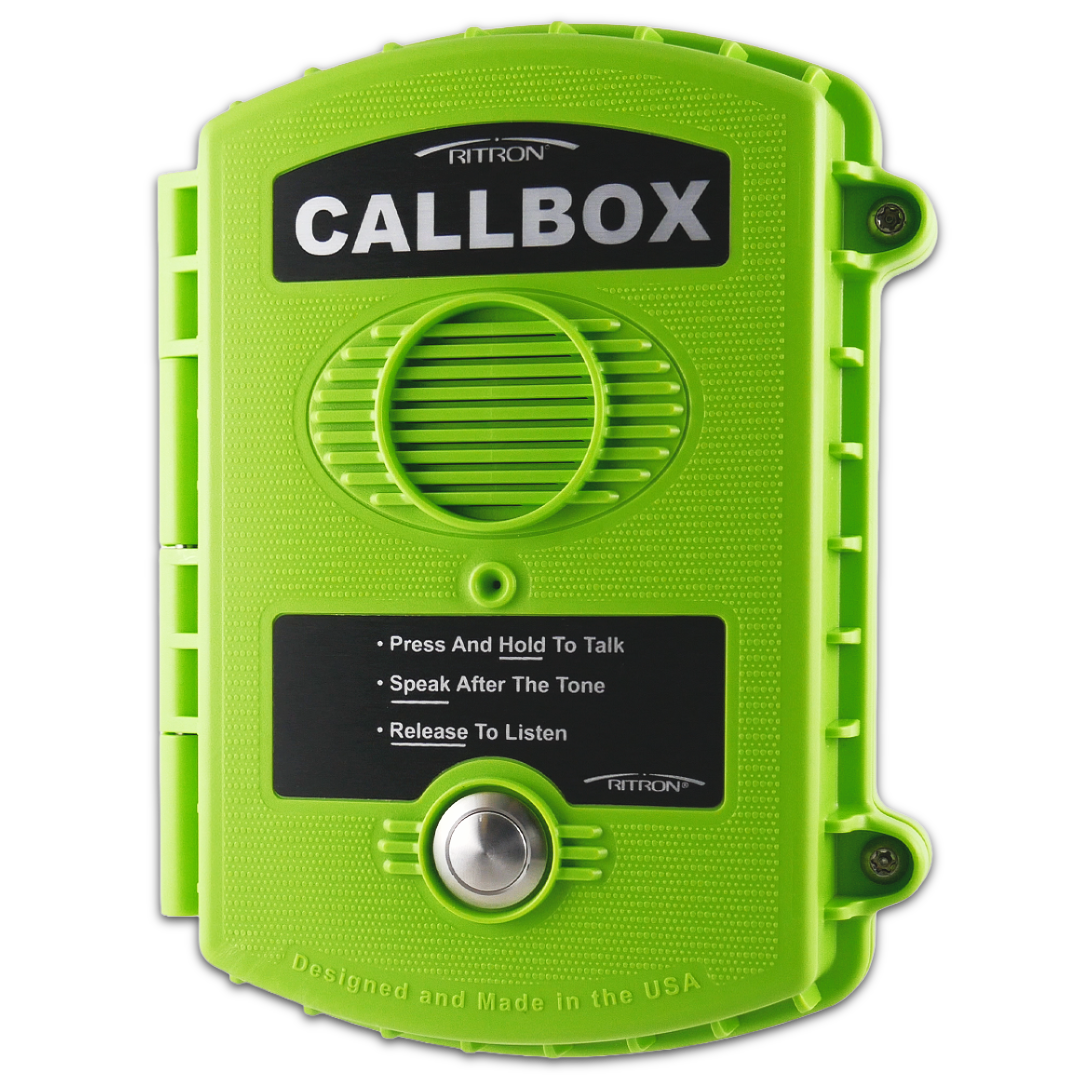

DMR Series Callbox DMR Digital

New Q Series Mounting Bracket Dimensional Drawings:

• RQX HINGED DIMENSIONS-A

Legacy Q-Series Mounting Bracket Dimensional Drawings:

• RQX CALLBOX DIMENSIONS-B
• RQX-Q-GN DIMENSIONS-A

• Features

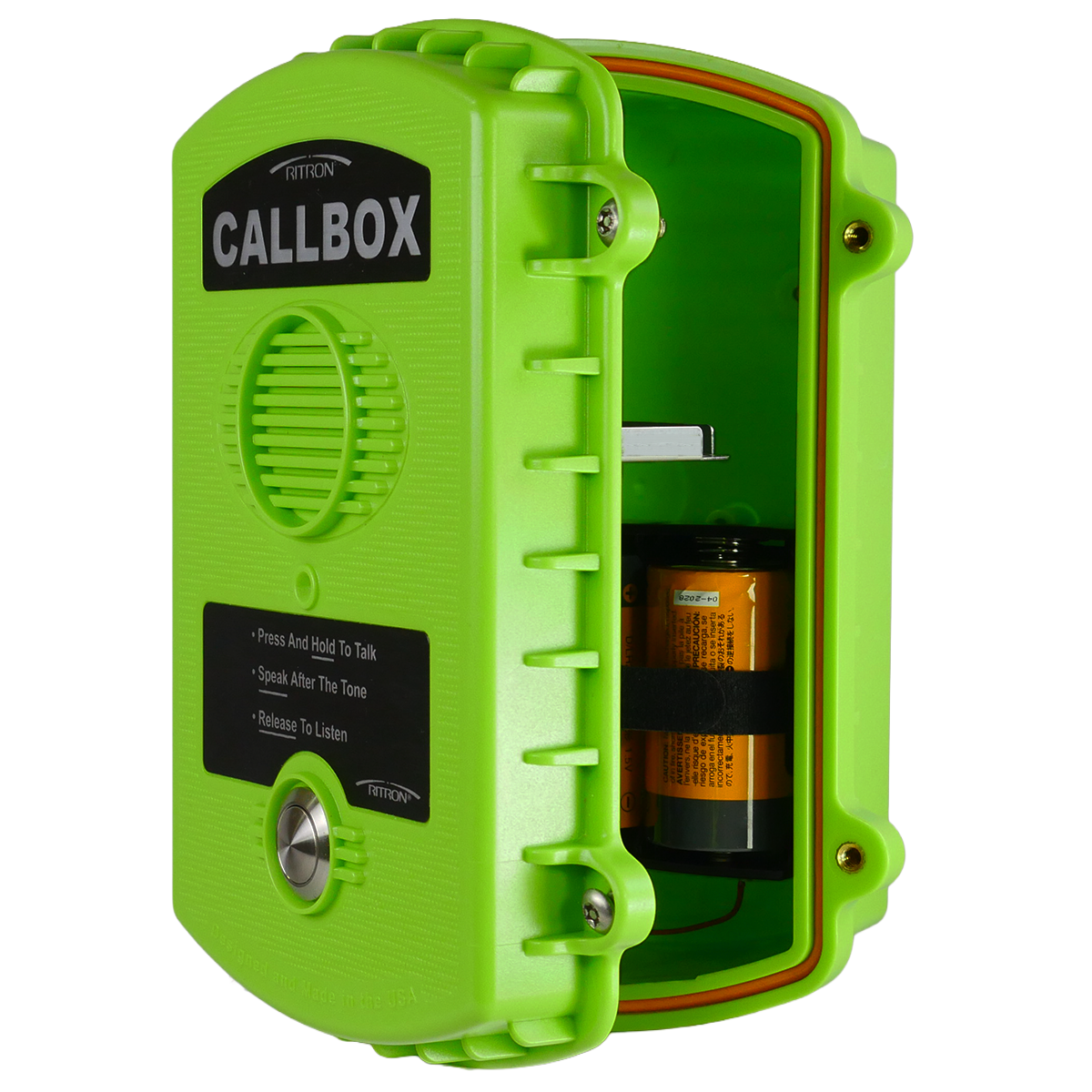

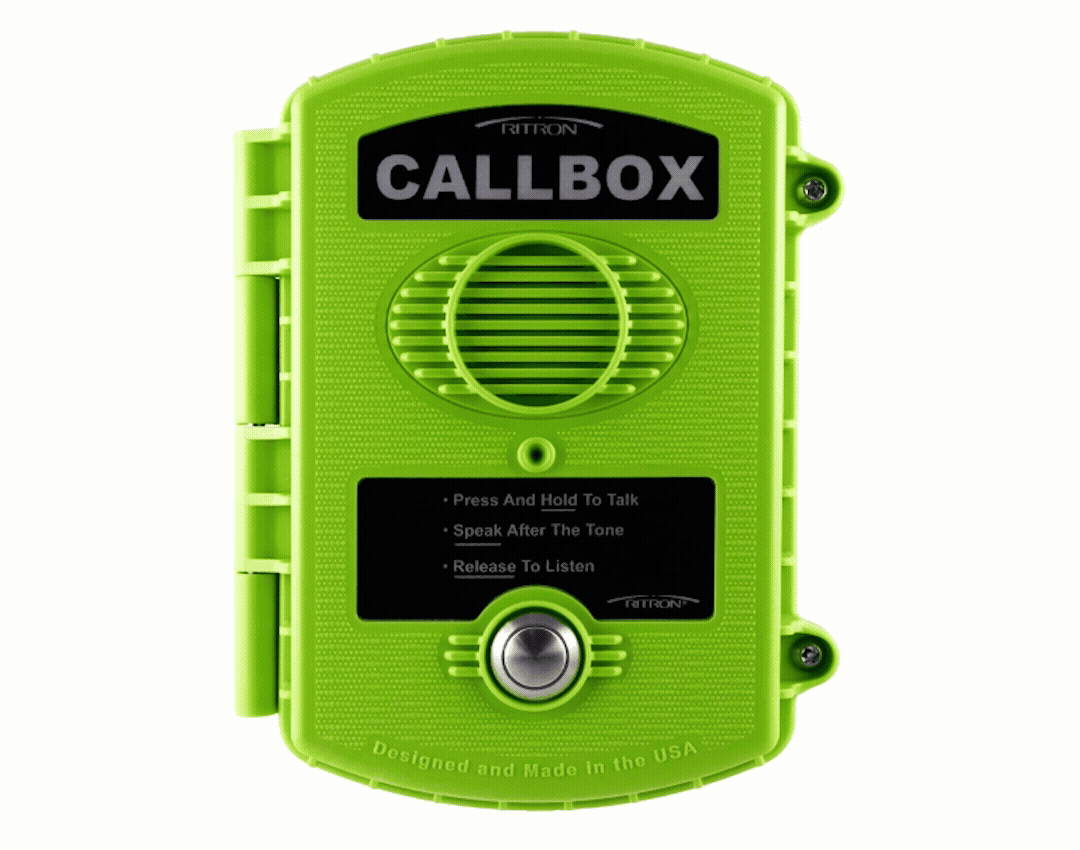

  • New Hinged Door for Hassle-Free Access Inside
  • New Styling Profile w/ Fully Integrated Hinge
  • Wireless, 2-Way, Push-To-Talk, TDMA Tier-2 DMR Digital Technology
  • Available in license-required UHF, 450-470MHz frequency band
  • No Trenching or Construction Costs To Install
  • Business Band Frequencies, Long Range Performance - Up to1 Mile** Line-Of-Sight.
  • Works with virtually any UHF DMR Tier-2 Business Band 2-Way Radio
  • Durable, Gasket-Sealed, High-Impact Molded, Polycarbonate Enclosure
  • Tamper and Vandal-Resistant, Internal Antenna, Long-Life, Machined Aluminum PTT Button
  • Battery* Powered For Stand-Alone Operation or external power capable for Always-On Operation. (*For optimal performance of battery only applications, Auto Turn-Off should be Enabled)
  • Built-In Relay Control allows Long-Range, Remote Control of Gates or Doors or use with optional strobe light for emergency applications.
  • Recordable voice messages. Greeting message and location ID alert message.
  • High-Audio Output - Provides easy-to-hear audio in high noise areas,
  • Adjustable Volume Settings Via field-programming
  • PC programmable
  • Standard Flange Mount Hole Pattern Easy Installation. Optional Mounting Brackets Available
  • Available In Different Enclosure Colors:  High Visibility Green and Coal Black
  • Call Ritron regarding custom colors for volume applications
  • Designed and Made in the USA
• Specs

  Models	Description – DMR Digital, Conventional	Tx Pwr Using 3 D-Cells	TX Pwr Using Ext 12VDC Pwr	Includes Built-In Relay,Stored-Voice Msg,Sensor Switch Inputs
  RQX-417DMR	UHF, 450-470 MHZ, Part 90 Freqs, Hi-Viz Green Housing	700mW	2 Watts	yes
  RQX-417DMR-BLK	UHF, 450-470 MHZ, Part 90 Freqs, Black Housing	700mW	2 Watts	yes

  • RF Channels:1 Channel DMR Digital (12.5KHz)
  • Signaling DMR Digital Mode: 16 Color Codes, Subscriber Unit ID (SUID), Destination ID (Individual & Group Selective Call, All-Call)
  • Dimensions:  7.97” H x 6.13” W x 3.08” D
  • Weight: 2.75 lbs
  • Enclosure Material: Gasket Sealed, High-Impact Polycarbonate

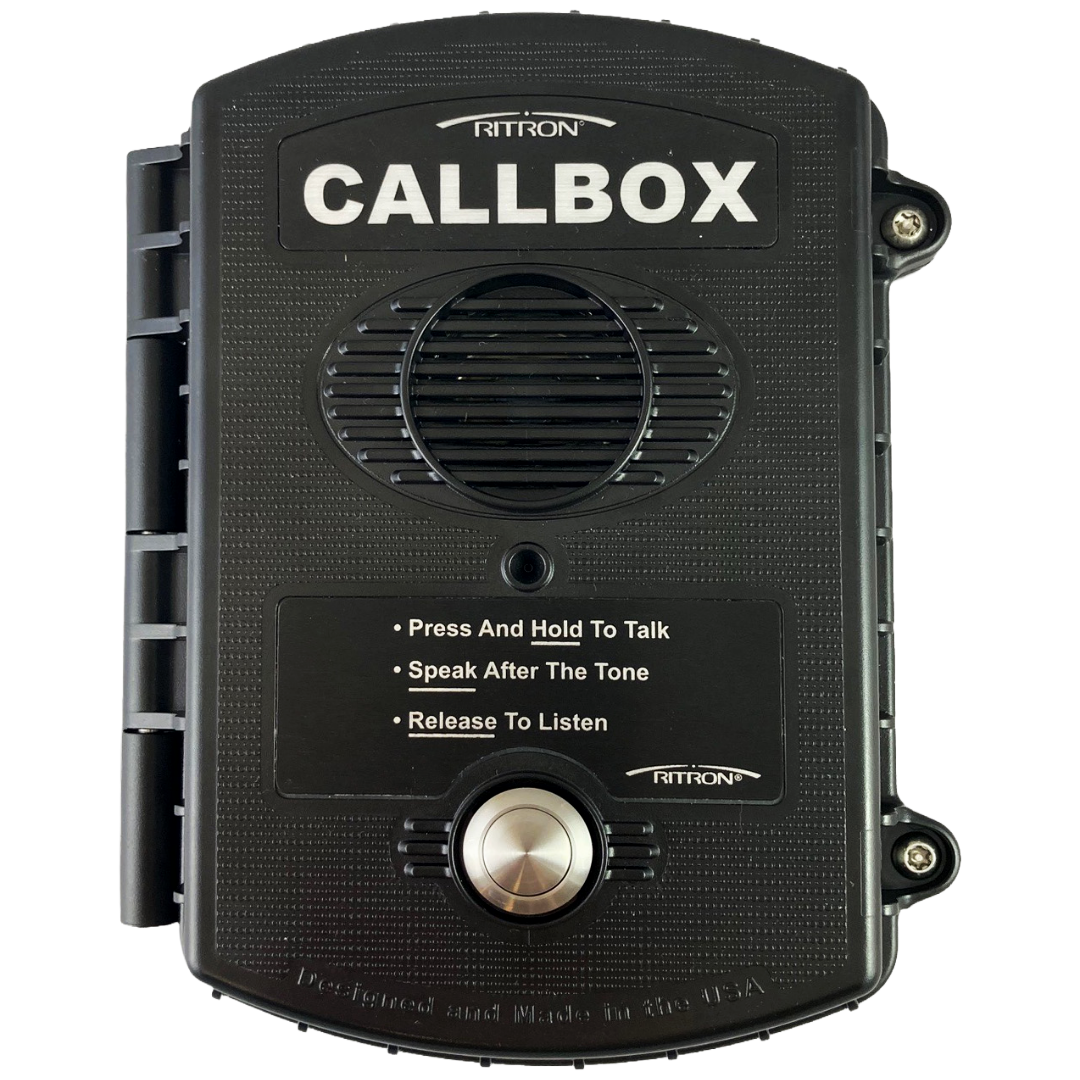

  • Colors: Black or High-Viz Green
  • Environmental: Splash resistant, shock and vibration per Ritron test
  • Operating Temperature: -20°C to +55°C (-4°F to 131°F) Battery rating. At 0°C the capacity is < 50% rated) Talk range will decrease at low temperatures when operating on alkaline batteries.
  • Programming: Field programming capability of limited parameters. Full programming capability using internal USB Connector used for full PC Programming.
  • Built-in Remote Control Relay: Can be used to remotely control gates, doors or strobe light. (7 Series) Relay switch is controlled when callbox receives the pre-programmed selective signaling command code.
    • SPDT, 3A, 125VAC/30VDC - Normally Open or Normally Closed (NO Default). Modes of Operation: Momentary or Toggle, On/Off.
    • Aux Sensor Monitoring Input : Optional sensors used to detect motion, gate movement, vandal/tamper or vehicle presence can be connected to the callbox using the sensor input.
    • Sensor input responds to an Open or Closed switch. Callbox will send either an alarm tone or a recordable voice message when optional switch/sensor detects a change.
    • Can also be programmed to automatically turn callbox ON and transmits recordable voice message or alarm tone to radios monitoring callbox activity.
  • Adjustable Speaker Volume: Adjustable 20% to 100%
  • Automatic Turn-Off Feature: Conserves batteries. Selectable turn-off times will automatically turn callbox off after a set period of inactivity on the radio channel. Auto Turn-OFF feature must be enabled when using battery only power.
  • Listen-In Feature: Callbox can be selectively paged to allow remote monitoring of audio in the vicinity of the callbox.
  • Busy Channel TX Inhibit: Prevents Callbox from transmitting if someone else is using the radio channel.
  • Recordable Voice Messages: Greeting Message/Send Call Alert Message/Sensor ON/Sensor OFF/ Low Battery Message/Send Power Fail Message/Auto “Re-Send” - Selectable 0-5 times.
  • Battery Life: 3 D-Cell Alkaline Batteries: Number of Transmissions: Approximately 6,000 based on a duty cycle of: 3 Seconds Receive, 3 Seconds Transmit, 10 Seconds Standby
• Accessories
  • RAM-1545: Dual-Band VHF/UHF magnet-mount antenna w/ 20ft. RG-58 coax/BNC (requires opt. cable #60201125)
  • R-STROBE: Blue Strobe Light, 120 VAC, 1 Amp
  • RPS-EXPO: AC Adapter only, 110VAC - 12VDC, External Power supply for the DMR Series Callbox
  • RSS-100: Solar Power System - Includes: RK-RQXMB: Mounting Brackets for DMR Series Callbox Enclosure
