HR Series, 2-Way Portable Radios
HR Series, 2-Way Portable Radio
Introducing the NEW HR Series 2-Way Portable Radio – Now with an easy-to-read color display! Designed to keep your on-site team connected, the HR Series delivers clear, powerful audio in a compact, rugged design.
Available in:
License-Free Business VHF MURS models and License Required VHF and UHF models, these reliable 2-way radios can integrate seamlessly into your existing Analog license-free VHF MURS system or your license-required VHF or UHF Analog or Conventional DMR digital radio network.
With dual-mode DMR conventional digital/analog operation, a long-lasting battery, and a 1-Watt speaker for loud, easy-to-hear audio, the HR Series is built to perform in demanding environments. It boasts an IP68 environmental rating, Programmable function buttons, VOX hands-free capability, and a multi-pin audio accessory jack make it highly versatile, while its lightweight, compact size ensures it’s comfortable for everyday use.
From optional gang charger kits to a variety of convenient accessories. Its dependable performance, modern design, and a one-year factory warranty make it the ideal solution for teams that need instant, cost-effective, and reliable 2-way communication.
Note: To customize your HR-220M for existing MURS radio systems download Free PC Programmer and purchase the optional programming cable (pn 60201144).
Why Choose the HR Series?
- VHF MURS, Analog, License Free (HR-220M)
- VHF & UHF, Analog/DMR Digital, License Required (HR-330 & HR-550)
- NEW Easy-to-Read Display (1.77″ TFT LCD Color Display)
- Durable & Dependable – Built-tough for demanding environments
- Environmental IP68 Rating
- Small Size, Lightweight
- Powerful 2-Watt Transmitter in VHF MURS, Or 2/5 Watt in VHF or 2/4 Watt in UHF – Ensures strong, clear communication
- Loud & Clear Audio – 1-watt speaker output for easy-to-hear communication
- Long Battery Life – 14 hours (Analog) & 18 hours (Digital)
- Compact & Lightweight – 4.5″ H x 2″ W x 1.125″ D, Weighing Only 9.5 oz
- Customizable & Easy to Use – 6 programmable function buttons, channel scan, and VOX hands-free capability.
- Flexible Audio Accessory Options – Multi-pin connector for enhanced versatility.
- Optional 6 Unit Gang-Charger kit – Converts standard charging trays to a convenient gang-charger.

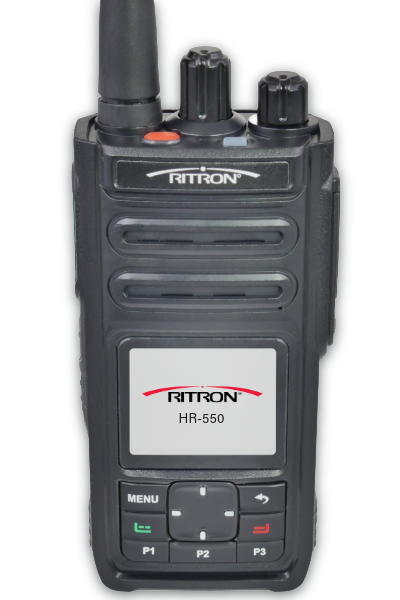

VHF HR-330 & UHF HR-550
- VHF & UHF, Analog/DMR Digital, License Required
- Easy-to-Read Display (1.77″ TFT LCD Color Display)
- Dual mode, DMR Digital/Analog Narrow Band
- TDMA, Tier-2, Conventional (Simplex or Repeater) Capability
- VHF, 5/2 Watt, 136-174MHz
- UHF, 4/2 Watt, 400-470MHz
- TDMA Direct Mode: Supports 2 slot operation in a single 12.5KHz channel
- 1,024 Channels Max
- 1,000 Contacts / 64 RX Groups / 32 Contacts Per RX Group
- Channel Number Voice Prompt
- Small Size: 4.5″ H x 2″ W x 1.125″ D
- Weight w/ Battery: 9.5oz
- Battery Life w/ 90/5/5 Duty Cycle:
- In Analog Mode: 14Hrs
- In Digital Mode: 18Hrs
- 1800mAH/13.32Wh, Lithium-Ion Battery Pack
- Optional 2200mAH/16.28Wh
- Loud, Easy-to-Hear Audio Output – 1 Watt
- INGRESS PROTECTION RATING:
- IP68 Certified Resistance to Water/Dust
- Audio Accessory Connector, Multi-Pin Side Mount
- 6 Programmable Function Buttons (PFB)
- Channel Scan
- Signaling:
- Analog: DTMF, SELCALL, 2-Tone (Encode Only)
- Digital: Color Codes/Unit ID/Group ID
- VOX Hands-Free Capability (radio only, no audio accessory)
- 1 Year Factory Warranty
HR-220M VHF MURS
- VHF MURS, 2 Watt, 7 VHF MURS Frequencies, License-Free Business Use
- Easy-to-Read Display (1.77″ TFT LCD Color Display)
- Analog, Narrow Band Capable
- 20 Channel Capability
- Channel Number Voice Prompt
- Small Size: 4.5″ H x 2″ W x 1.125″ D
- Weight w/ Battery: 9.5oz
- 14 Hour Battery Pack w/ Low Batter Alert
- Loud Audio Output – 1000mW
- Audio Accessory Connector (Type: Multi-Pin Side Mount)
- INGRESS PROTECTION RATING:
- IP68 Certified Resistance to Water/Dust
- 6 Programmable Function Buttons (PFB)
- Channel Scan: Priority and Normal
- CTCSS/DCSS Encode/Decode:
- DTMF, Selcall, and 2-Tone (300-3000Hz) (GateGuard Codes), Encode Only
- Radio Status Icons
- VOX Hands-Free Capability
- Regulatory Approvals:
- FCC
VHF HR-330 & UHF HR-550
| Model: | HR-330 | HR-550 |
|---|---|---|
| Freq. Band: | VHF, 136-174MHz | UHF, 400-470MHz |
| Channels | 1024 Channels Max, 32 Zones, 32 Channel Zone | 1024 Channels Max, 32 Zones, 32 Channel Zone |
| Contacts | 1000 Total Radio Wide | 1000 Total Radio Wide |
| RX Groups | 64 Radio Wide (up to 32 Contacts per RX Group) | 64 Radio Wide (up to 32 Contacts per RX Group) |
| Operating Temperature | -30°C to +60°C | -30°C to +60°C |
| Battery Life – 1800mAHr | Display Off: 11hr (Analog), 14hr (Digital) Display On: 10hr (Analog), 13hr (Digital | Display Off: 11hr (Analog), 14hr (Digital) Display On: 10hr (Analog), 13hr (Digital |
| Battery Recharge Time | 3 Hours | 3 Hours |
| Dimensions | 4.5″ H x 2″ W x 1.125″ D | 4.5″ H x 2″ W x 1.125″ D |
| Screen Size & Type | 1.77″ TFT LCD Color Display | 1.77″ TFT LCD Color Display |
| Weight | 9.5oz | 9.5oz |
| Signaling | Analog: DTMF, SELCALL, 2-Tone (Encode Only) Digital: Color Codes, Unit ID, Group ID | Analog: DTMF, SELCALL, 2-Tone (Encode Only) Digital: Color Codes, Unit ID, Group ID |
| Encryption | 16 Bit, Digital Mode Only AES256/ARC4 | 16 Bit, Digital Mode Only AES256/ARC4 |
| Programmable Function Buttons (PFB) | 6 | 6 |
| Transmitter TX Power | 2 Watt / 5 Watt | 2 Watt / 4 Watt |
| Receiver Sensitivity | Analog: .22uV / -120dBm (12dB SINAD) Digital: .25mV / -118dBm (BER 5%) | Analog: .22uV / -120dBm (12dB SINAD) Digital: .25mV / -118dBm (BER 5%) |
| Audio Output Power | 1 Watt | 1 Watt |
| Regulatory Approvals | FCC-Part 90, IC Industry Canada-RSS119 | FCC-Part 90, IC Industry Canada-RSS119 |
| FCC ID# | AIERIT57-330 | AIERIT57-550 |
| ISED Canada | 1084A-RIT57330 | 1084A-RIT57550 |
HR-220M VHF MURS
| Model: | HR-220M |
|---|---|
| Freq. Band: | VHF, MURS |
| Channels | 20 Channels |
| Battery Life | 13 Hours @ 90/5/5 Duty Cycle |
| Battery Recharge Time | 3 Hours |
| Dimensions | 4.5″ H x 2″ W x 1.125″ D |
| Screen Size & Type | 1.77″ TFT LCD Color Display |
| Weight | 9.5oz |
| Signaling | CTCSS DCSS (Encode Only: DTMF, SelCall, 2-Tone) Compatible w/ Ritron GateGuard System |
| Scrambler | Voice Inversion |
| Programmable Function Buttons (PFB) | 6 |
| Transmitter TX Power | 2 Watt, 1 Mile Line-of-Site No Obstructions |
| Receiver Sensitivity | .25uV |
| Audio Output Power | 1 Watt |
| Applicable Environmental Ratings | INGRESS PROTECTION RATING: IP68, Resistance to Water/Dust |
| FCC ID# | AIERIT57-220M |
- 60201144: HR Series Programming Cable
- Optional 3” Antenna
- VHF: AFX155S
- UFH: AF-X460S-PR

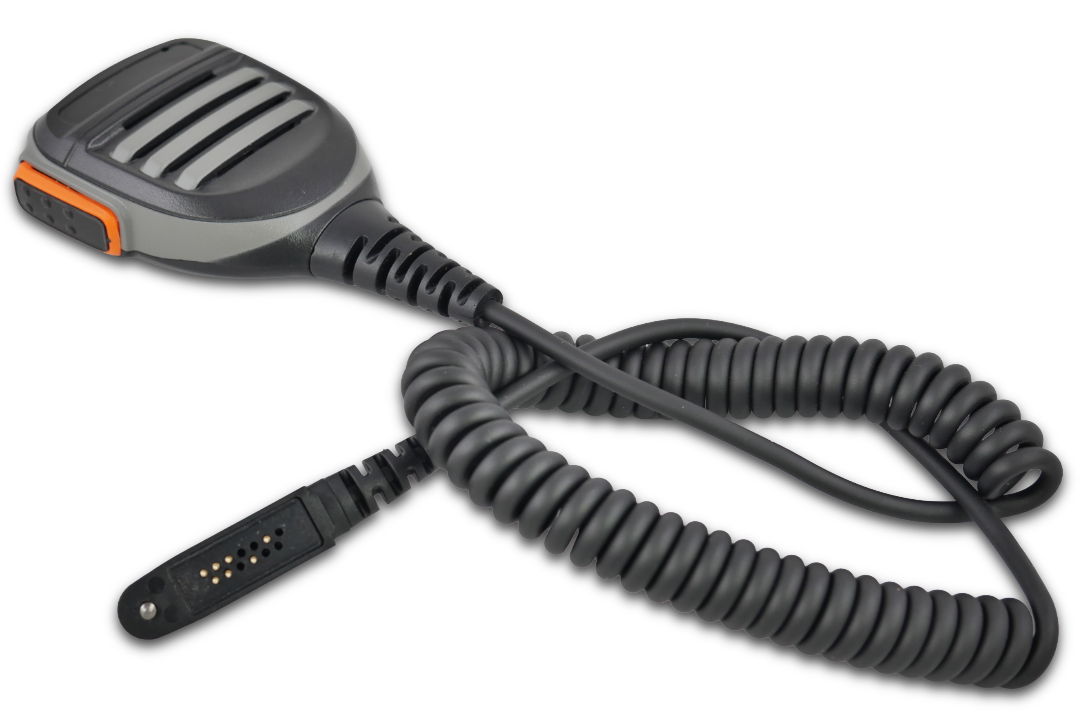

- RSM-11HR: Remote Speaker Mic

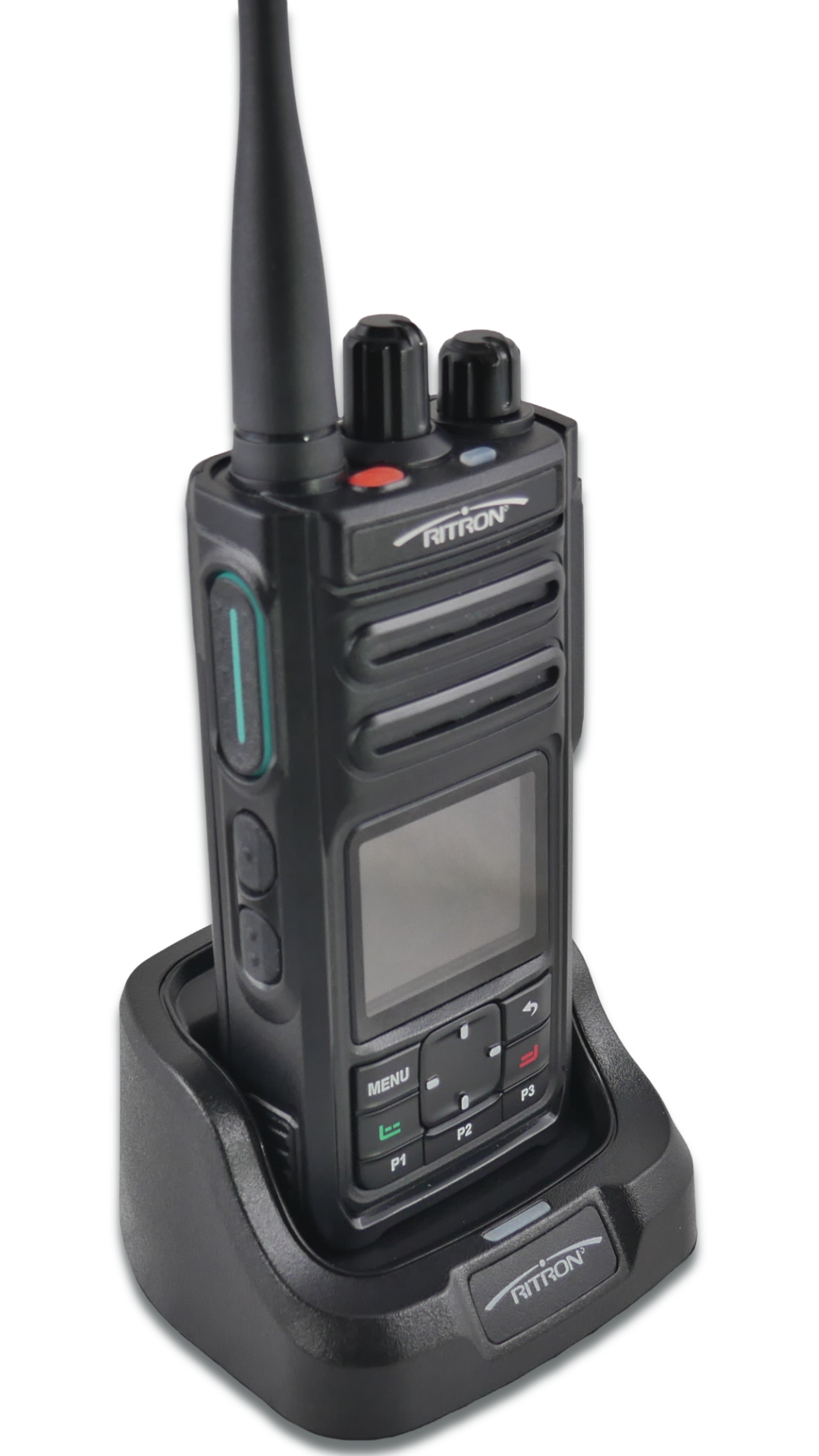

- BC-6PR-KIT: 6 Unit Charger Kit Includes a base mounting plate, 6 plug pigtail cable, 6 adapters, and 110-220V AC Adapter. DOES NOT include 6 individual radio charging stands. Charging stands come standard with each HR Series radio.
- Dimensions: 11″ W x 7″ L x 4″ H – Assembly Required
- BP-HR15-Li: Battery, Rechargeable, 1800mAH Li-Ion wo/Belt Clip, Fits HR Series

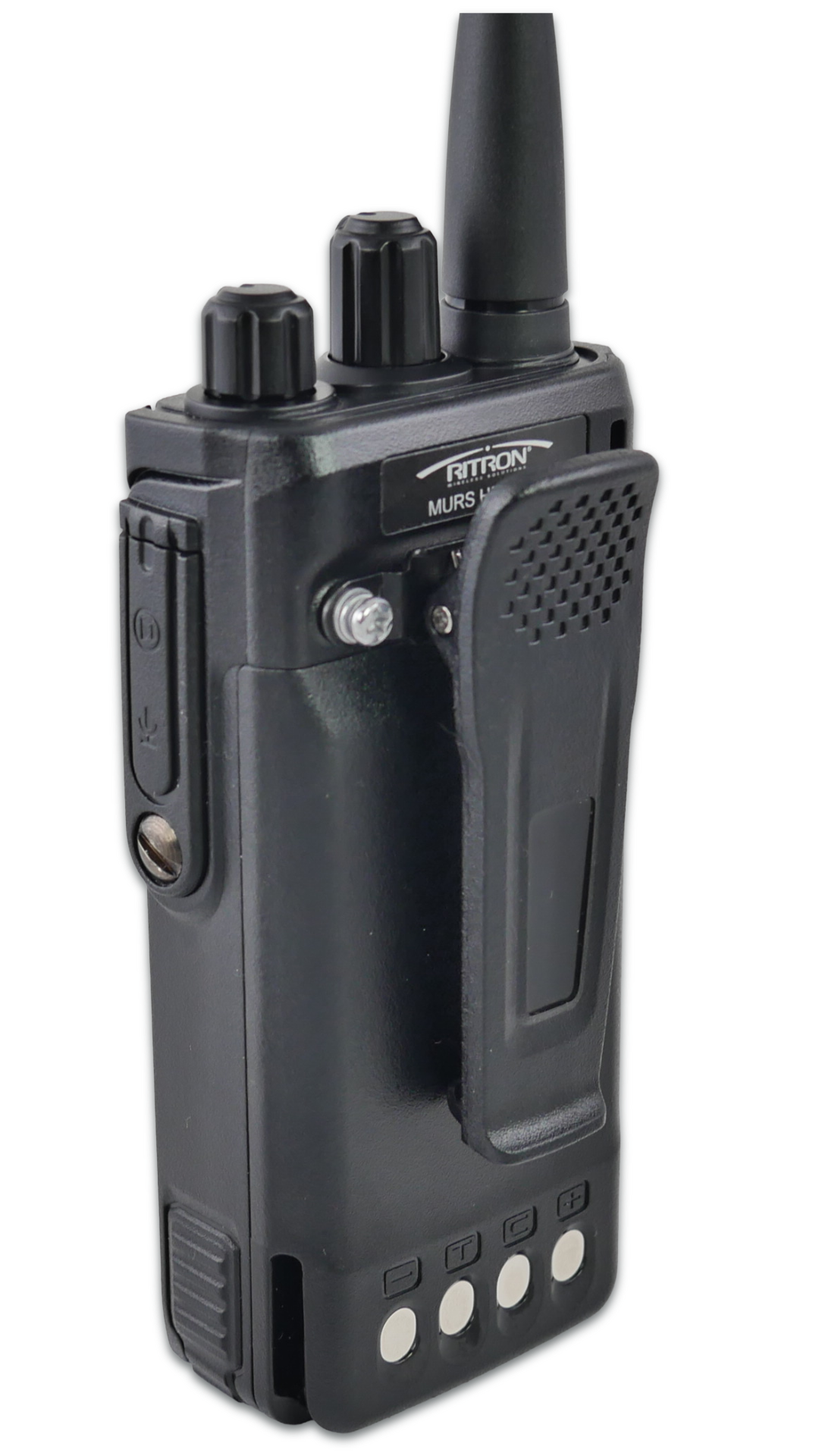

- CB-HR: Belt Clip, Spring Action with 2 Screws for attachment, fits HR Series Portable
- HR Series Programming Cable pn 60201144. PC programming requires the purchase of this HR Series programming cable.
- HR-220M-PCPK-1-USB Kit: Programming Software Thumb Drive, Radio to PC USB Cable (includes pn 60201144) for HR-220M radios.
- HR-220M-PCPS: PC Programming software for HR-220M. Requires purchase of programming cable pn 60201144.
- HR-220M-PCPS-1 Kit: Programming Software Thumb Drive, For HR-220. Download *FREE HR-220M-PCPS-1 Programming Software at www.ritron.com/tools. Requires purchase of programming cable pn 60201144.
- HR-330-PCPS: PC Programming software thumb drive only. Fits HR Series DMR Digital/Analog Radios. Requires purchase of programming cable pn 60201144.
- HR-550-PCPS: PC Programming software thumb drive only. Fits HR-550 Series DMR Digital/Analog Radios. Requires purchase of programming cable pn 60201144.
- HR-PCPK-1-USB Kit: Programming Software Thumb Drive, Radio to PC USB Cable #60201144, Fits HR Series HR330, HR550.
- HR-PCPS-1-USB: PC Programming software thumb drive only. Fits HR-330/550 DMR Digital/Analog Radios. Requires purchase of programming cable pn 60201144.
The Ritron HR Series 2-Way Portable Radio is ideal for ANY industrial, commercial, and business application, including the following:
- Retail
- Golf Courses
- Manufacturing
- Education
- Construction
- Transportation
- Railroad
- Camps
- Convenience Stores
- Storage Facilities
- Distribution Centers
- Entertainment Facilities
- Access Control
- Healthcare
- Warehousing
