QuickTalk RQT-Sensor Monitoring, Voice Alerting Radio Transmitter
QuickTalk™ Voice Alerting Radio Transmitter
Monitor virtually any process or condition 24/7/365 over your 2-way radio system. Wireless alerting empowers your staff to respond to emergencies more quickly, to prevent costly damage or reduce disruptive downtime. Monitor temperature, liquid level, power-fail, moisture, vandal/tamper alarm, panic alarm, door ajar…etc. The RQT is an industrial-grade, radio transmitter with on-board switch inputs and recordable voice messages. Connect up to 4 different sensors or switches to the RQT and record a corresponding voice message for each, when the sensor or switch detects a change, your custom voice message will be immediately transmitted to the appropriate radio-equipped personnel.
The RQT is compatible with any VHF or UHF business band 2-way radio and can even be programmed to work with radio repeaters.
- Models: UHF 450-470MHz, VHF 150-165MHz, VHF MURS License-Free Business Use
- Analog, Narrow Band Only (12.5kHz) Operation
- 120mW and 2 Watt Models Available
- Monitor Up To 4 Switch Inputs
- Multi-Channel/Frequency Capability. Each input can be programmed to transmit on a different frequency, (e.g. Input 1 transmits on the Maintenance channel; Input 2 Security; Input 3 Operations etc.)

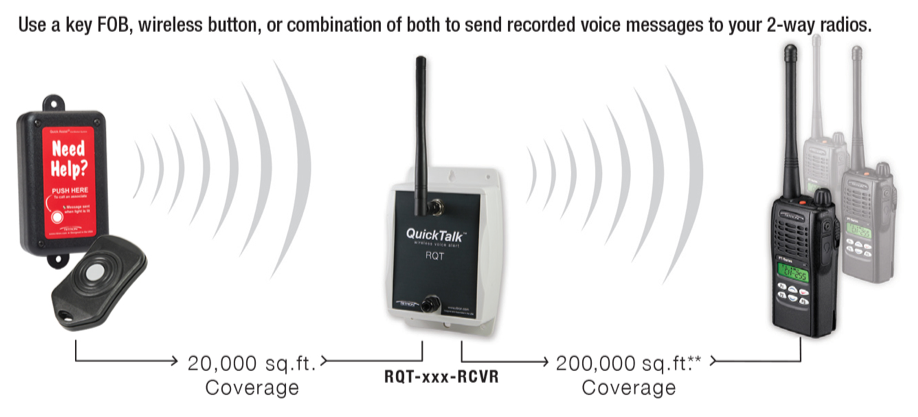

- Optional, Internal, 433MHz UHF Receiver. Receiver allows remote keyfob activation (e.g. Emergency Call Button) from up to a few hundred feet away.
- Easy to record voice messages.
- PC Programmable
- Designed and Assembled In The USA
| Models | FCC Rule Parts | Frequency Range | No. of Channels | RF Power Input |
|---|---|---|---|---|
| RQT-451-RCVR (UHF) | 90 | 450 to 470 MHz | 4 | 120 mW |
| RQT-452-RCVR (UHF) | 90 | 450 to 470 MHz | 4 | 2 W |
| RQT-151-RCVR (VHF) | 90 | 150 to 165 MHz | 4 | 12- mW |
| RQT-152-RCVR 9 (VHF) | 90 | 150 to 165 MHz | 4 | 2 W |
| RQT-151M-RCVR (VHF MURS, License-Free Business Use) | 95 | 5 VHF MURS Frequencies | 4 | 120 mW |
| RQT-152M-RCVR (VHF MURS, License-Free Business Use | 95 | 5 VHF MURS Frequencies | 4 | 2 W |
- Coded Signaling Encode: CTCSS, Quiet Call, 51 Tones DCS, Digital Quiet Call, all codes DTMF ANI 3-7 tone Selcall
- Typical Range: One half mile to a handheld radio transceiver using the standard flexible antenna. Greater range is possible if optional antenna (RAM-1545), or a radio repeater is used.
- Battery Life: 1 year when using AA batteries and the unit transmits a 5 second message once each hour, 24 hours per day, 5 days per week or approximately 7,000 transmissions. Internal Battery: 6 AA batteries. (Lithium-Ion batteries, non-rechargeable)
- External Power: 12 – 18 VDC, Use Ritron p/n# RPS-EXPO
- Antenna Connector: BNC, 50 Ohms, front panel mounted
- Antenna: Ritron AFB-1545 Standard Antenna, Flexible Whip, 14 inches long with elbow connector.
- Housing: Polycarbonate Dimensions: 7.57” x 5.07” x 2.65” (19.23cm x 12.88cm x 6.73cm)
- Weight: 1 pound, without batteries and antenna
- Number of Switch Inputs: 4 Momentary, Latching, Analog Voltage or Resistance
- Voice Message Length: 24 seconds total for all voice messages, equally allocated to the programmed inputs
- Auxiliary Messages: (Fixed Length) Low Battery (2 seconds) External Power Failure (2 seconds) Location (2 seconds) One location message per RQT. Precedes voice message for each input.
- Programming Method: User Programmable with Ritron RQA/RQT PC Programmer via USB Programmable Features: – 4 independently programmed inputs – Analog or digital input operation – Event driven and/or scheduled transmission of input status – Compressed transmitted audio (compatible with companded radios) – Preamble alert tone prior to transmitter voice message (selectable On/Off) – Unique, user recorded voice messages – Voice message recording via on-board microphone or pre-recorded .wav file – External power failure and low battery alert.
- 60201123: 3.5mm-JST RQT wav record cable
- AFB-1545: Replacement BNC 90 Degree Pivotal Antenna, Dual Band VHF/UHF
- RAM-1545: Magnetic Mount BNC Wire Antenna, 25 Ft Coax Cable VHF/UHF
- RPS-EXPO: Power Supply, 110 VAC, 12 VDC
- Perfect for ANY Industry that needs to monitor ANY process
- Common applications include monitoring the following:
- Temperature
- Liquid level
- Power-fail
- Moisture
- Vandal/tamper alarm
- Panic alarm
- Door ajar
- Any many more!
