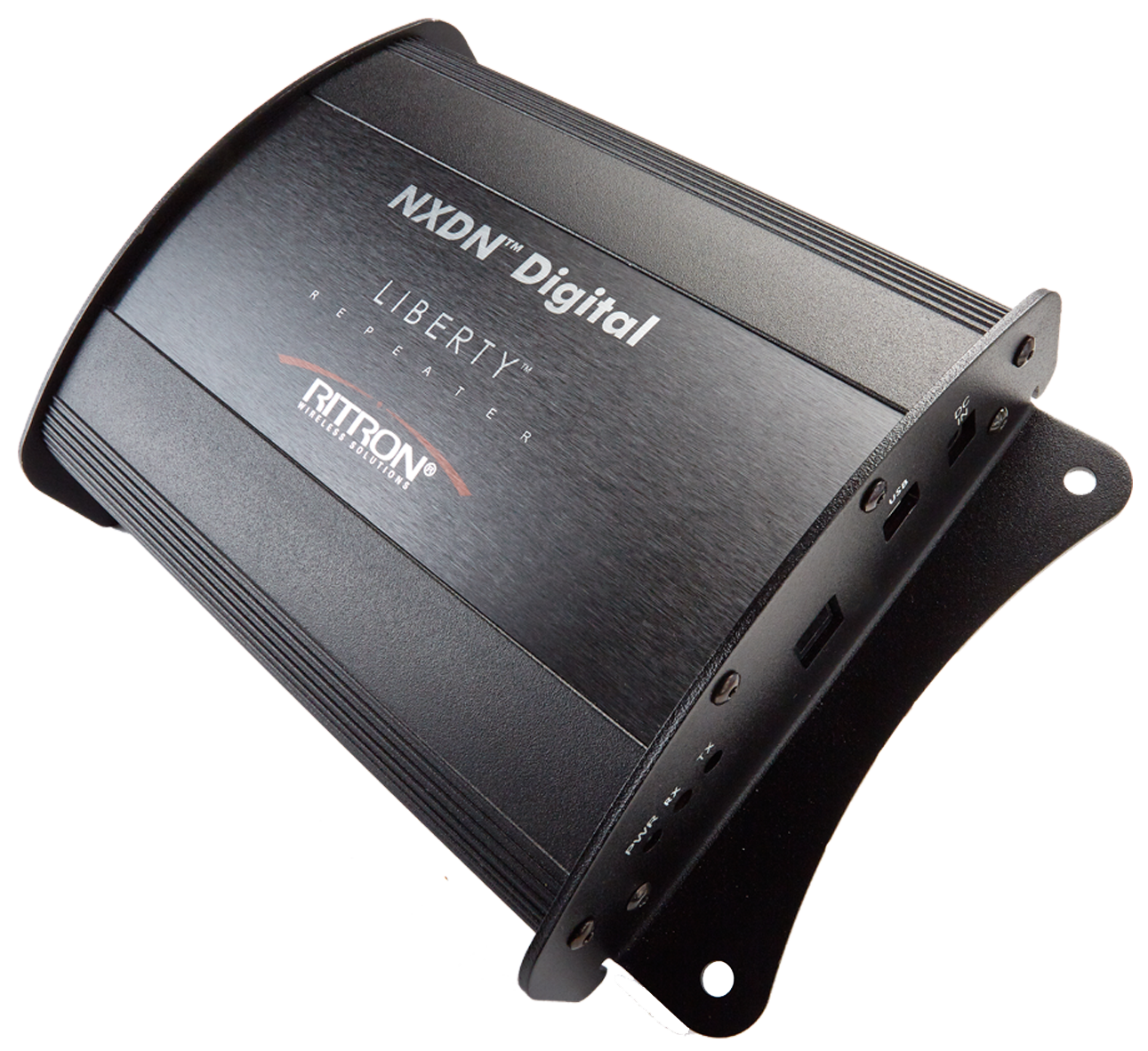

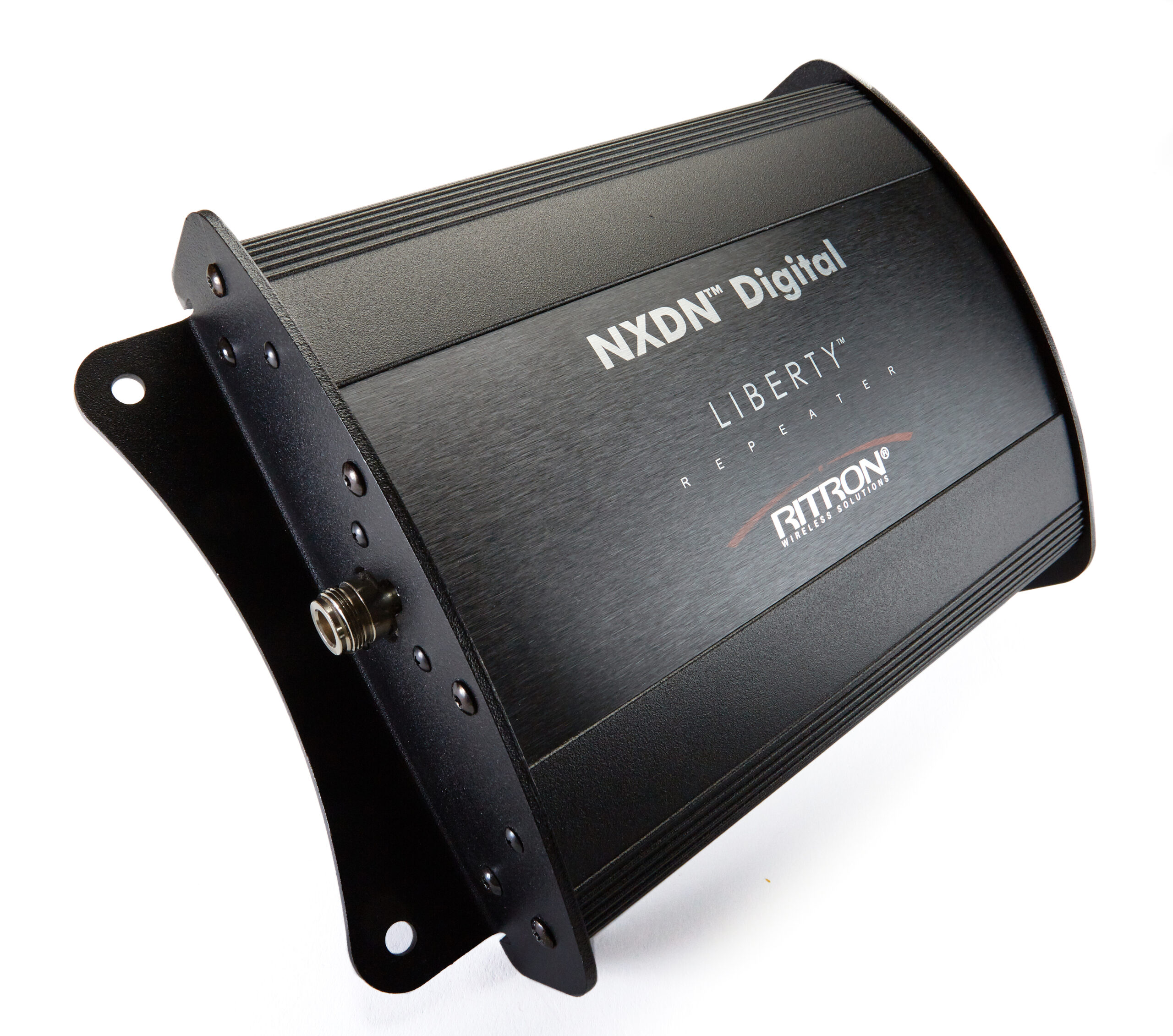

UHF Liberty Repeater – NXDN
UHF NXDN Digital Liberty Repeater 10-Watt Transmitter
The NXDN Digital Liberty Repeater is the perfect wireless solution for on-site communication needs. Eliminate dead spots and intermittent coverage areas in industrial plants, K-12 schools, warehousing, and other “tough-to-cover” applications. No need to suffer from a lack of coverage! With 10 Watts of transmit power and the proper antenna, the NXDN Liberty Repeater can deliver rock solid digital communication for all types of compatible NXDN 2-way radios.
- Frequency Range: 450-470 MHz @6.25kHz Very Narrowband
- Conventional, NXDN Digital Technology
- Frequency Stability: +/- 1 ppm (-30 C to +50 C)
- Integrated Full Duplex Radio and Duplexer w/ “N” Type Connector
- Power ON, RX, and TX Transmit Indicator LEDs
- Capable of up to 10 RAN codes
- Supports (repeats) 6.25 KHz NXDN frames
- Includes 4-cavity notch-type duplexer
- 110VAC to 13.8VDC power supply
- 12VDC back-up capable
- Compact size 2.125″ H X 8.0″ W X 5.75″ D & Lightweight: 3.5 lbs
- PC Programmable – manual tuning required for specific frequency
- Built-In Mounting Flanges
- Designed and Made in the USA
- View Repeater Brochure for Specs
- Campuses (Business and School)
- Warehouses
- Construction
- Fields
- Storage Facilities
- Hospitals
- Retail
- Transportation
- Access Control
- Golf Courses
