Top problem-solving benefits:

• Mobile – Users maintain mobility to deliver mass notification messaging on the fly using 2-way radio vs at a fixed location.
• Wireless – Eliminates the complexity of wired systems.
• Cost-Effective – Much cheaper than expanding or installing a new wired system.
• Long-Range – Your portable 2-way radio transmits to the LoudMouth system inside or outside the facility.
• Compatible – Leverages existing analog or digital radios to send message to receiver.
• Pinpoint Hard-to-Reach Areas – Where a wired system is impossible to install, place speakers and receivers anywhere you need them.
• Quick and Easy to Deploy – No complicated wiring diagrams or trenching.
• Immediate Communication – In the event of an emergency or urgent situation like weather, accidents, or intrusion.

Additional Features

• Rugged, Industrial-Grade VHF/UHF business band receiver. Compatible with other analog business band 2-way radios.
• Business Band Frequencies. Models include: VHF 150-165MHz (includes 5 MURS license-free business use only frequencies) or UHF, 450-470MHz.
• Built-in 8 Watt PA amplifier*.

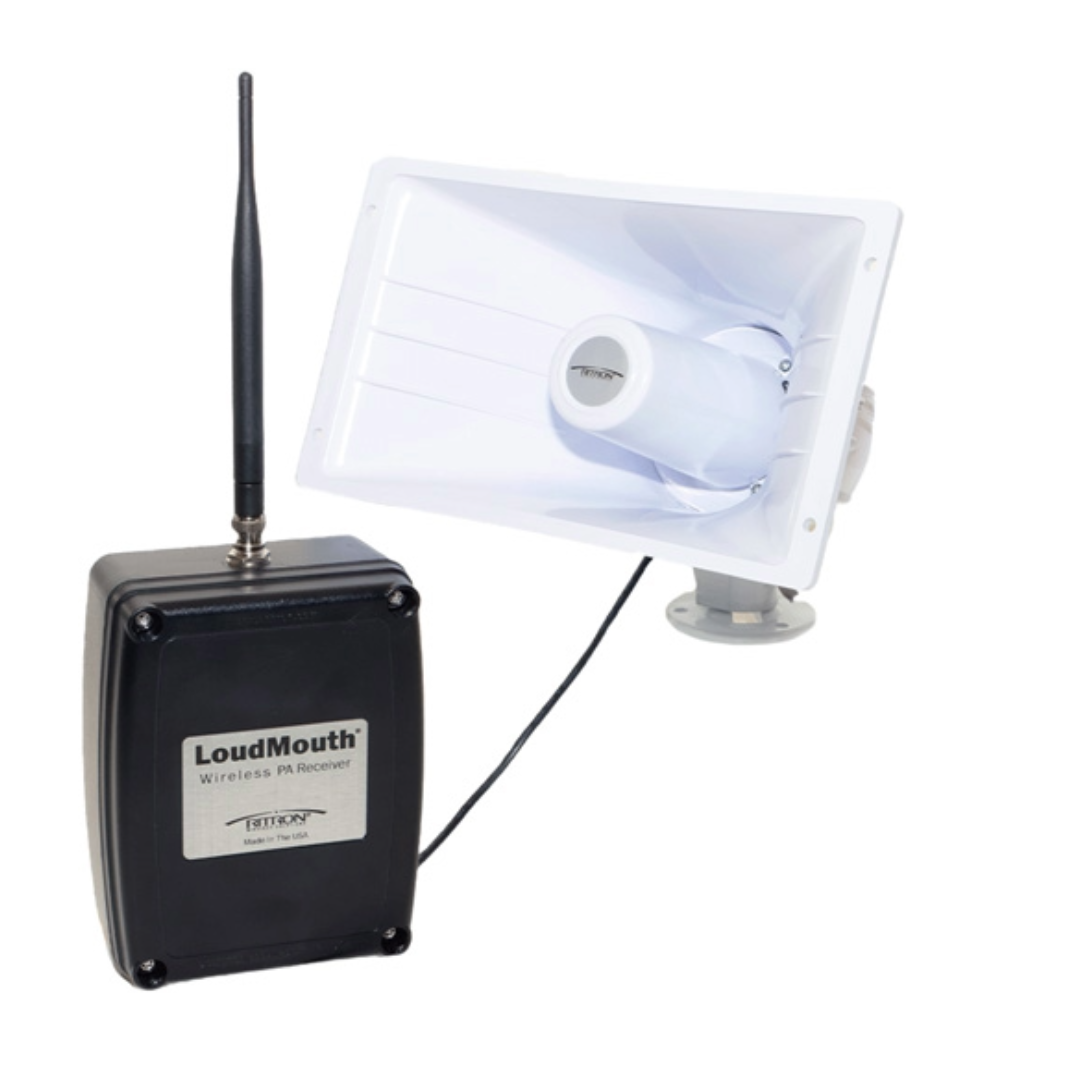

• Indoor/outdoor rated PA loudspeaker with mounting bracket.
• LM receiver housed in a gasket-sealed enclosure measures 7″ H x 5″ W x 3″ D, 2 lbs.
• Includes wall mounting bracket. Optional LMH-100 enclosure for outdoors or harsh environments.
• Field Programmable Privacy Codes (digital and analog). Choose from 153 possible codes for added PA security access.
• Field Programmable “Paging Codes” Select 1 of 9 different “paging codes” for added PA security access.
• Volume Settings allows “best-fit” for a variety of applications.
• “LIVE” PA mode or Record-And-Play mode, configurable. Note: Record-and-Play operation is recommended for use of maximum number of product features.
• Automatic Message Repeat* Feature – Repeats message from 1 to 4 times consecutively when LM recevier in Record-And-Play mode.
• Visual Alert Option – Built-in relay allows use of an optional strobe light – provides advance visual indication of an incoming PA message.
• “Custom” Configuration via PC Programming – Can also be PC programmed using special Ritron programming software to “custom” frequencies or even radio repeaters.
• Loud Audio Output – PA horn speaker delivers up to 85dB of audio output @ 50 feet to get your message out loud and clear.
• LM Receiver Supports Up To 2 PA Speakers – With optional “Y” adapter (#RYCONN) and 1 additional PA speaker (#05500040), LM receiver can provide multi-direction PA coverage.

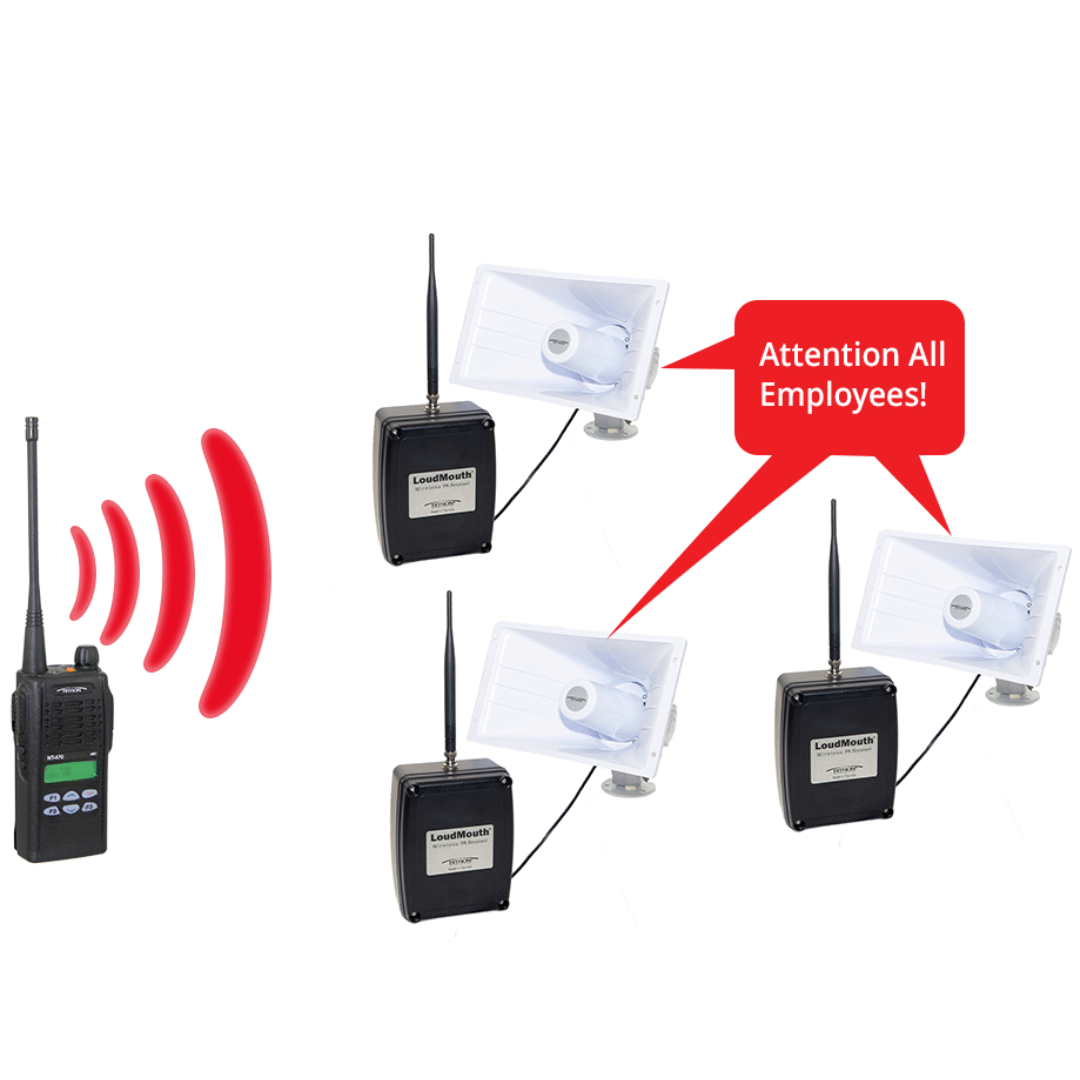

• Multi-Zone Paging Capability – Multiple paging zones can be configured using 2-tone codes. Allows properly configured 2-way radios to access more than one PA speaker/zone.
• Operating Temperature: -22º F to +140º F
• Receiver sensitivity – 12dB SINAD @ .20µV
• Frequency Response: 300 to 3000 Hz de-emphasized
• Signaling Capability – CTCSS and DCS decode, 2-Tone Decode
• Optional Back-up Battery – #BP-LM-Li22
• Designed and Made in the USA
• *Receiver is indoor-rated only. Install in non-corrosive environments, away from the elements. See optional LMH-100 weatherproof housing for outdoor or other potentially corrosive environments.
