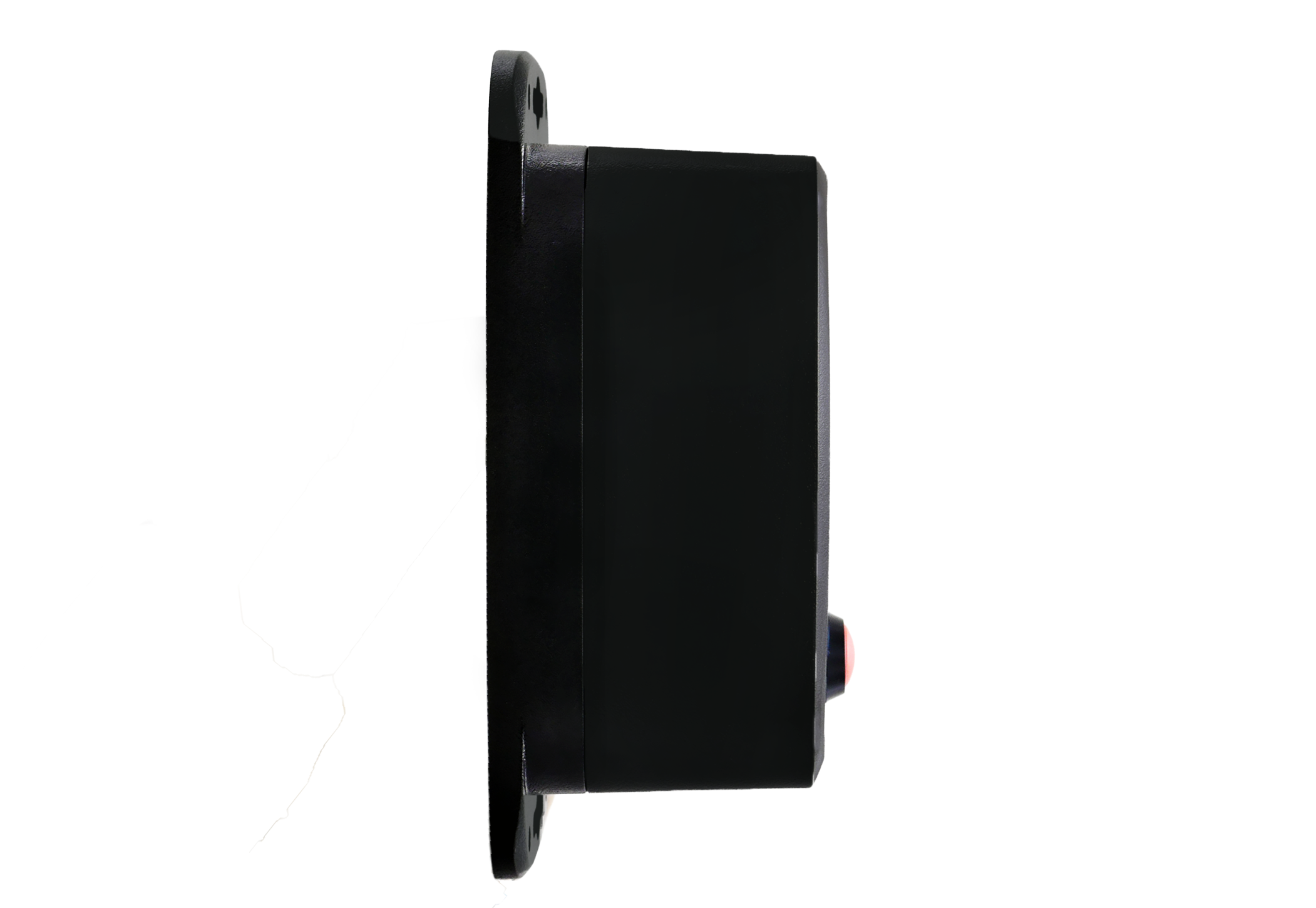

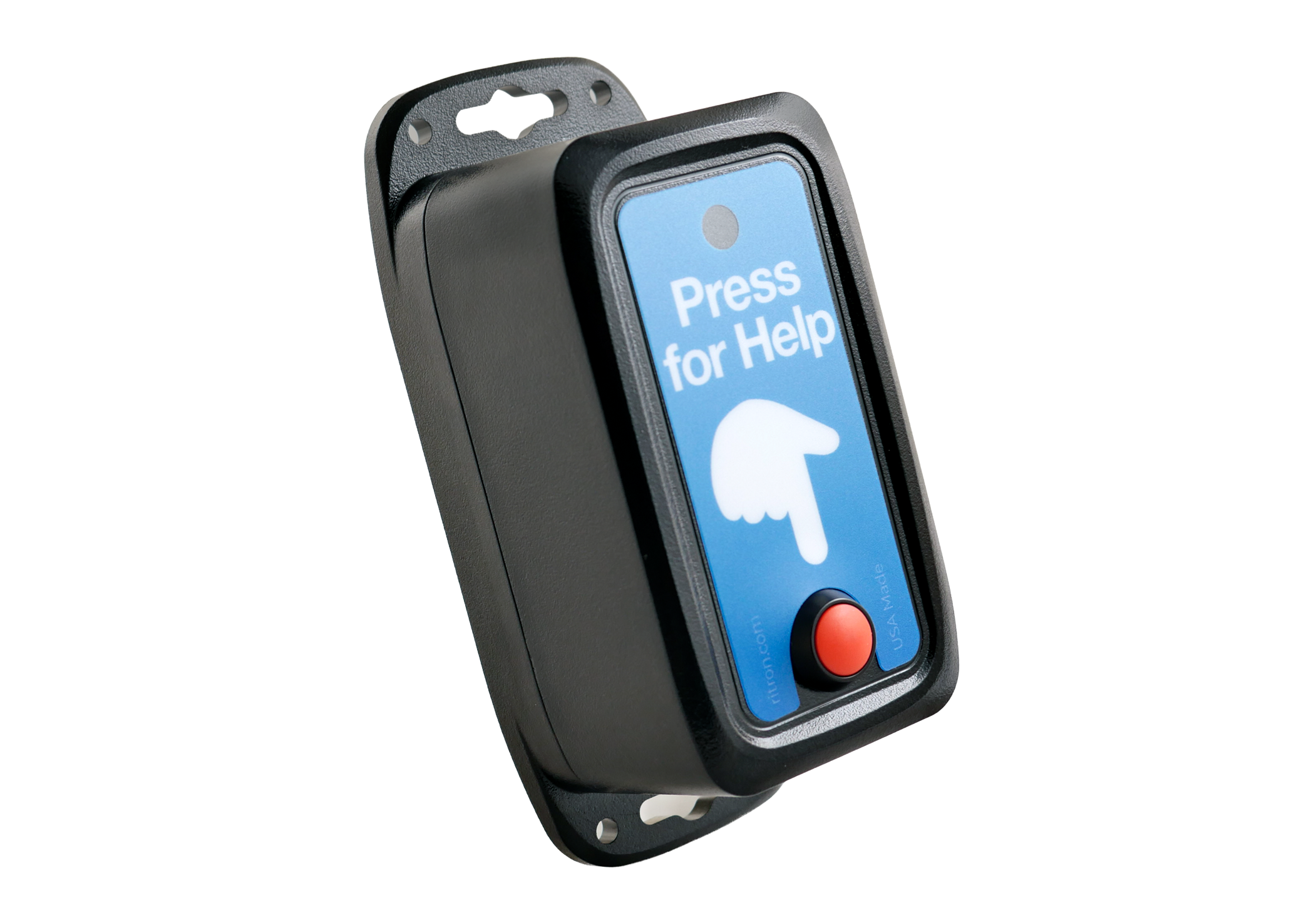

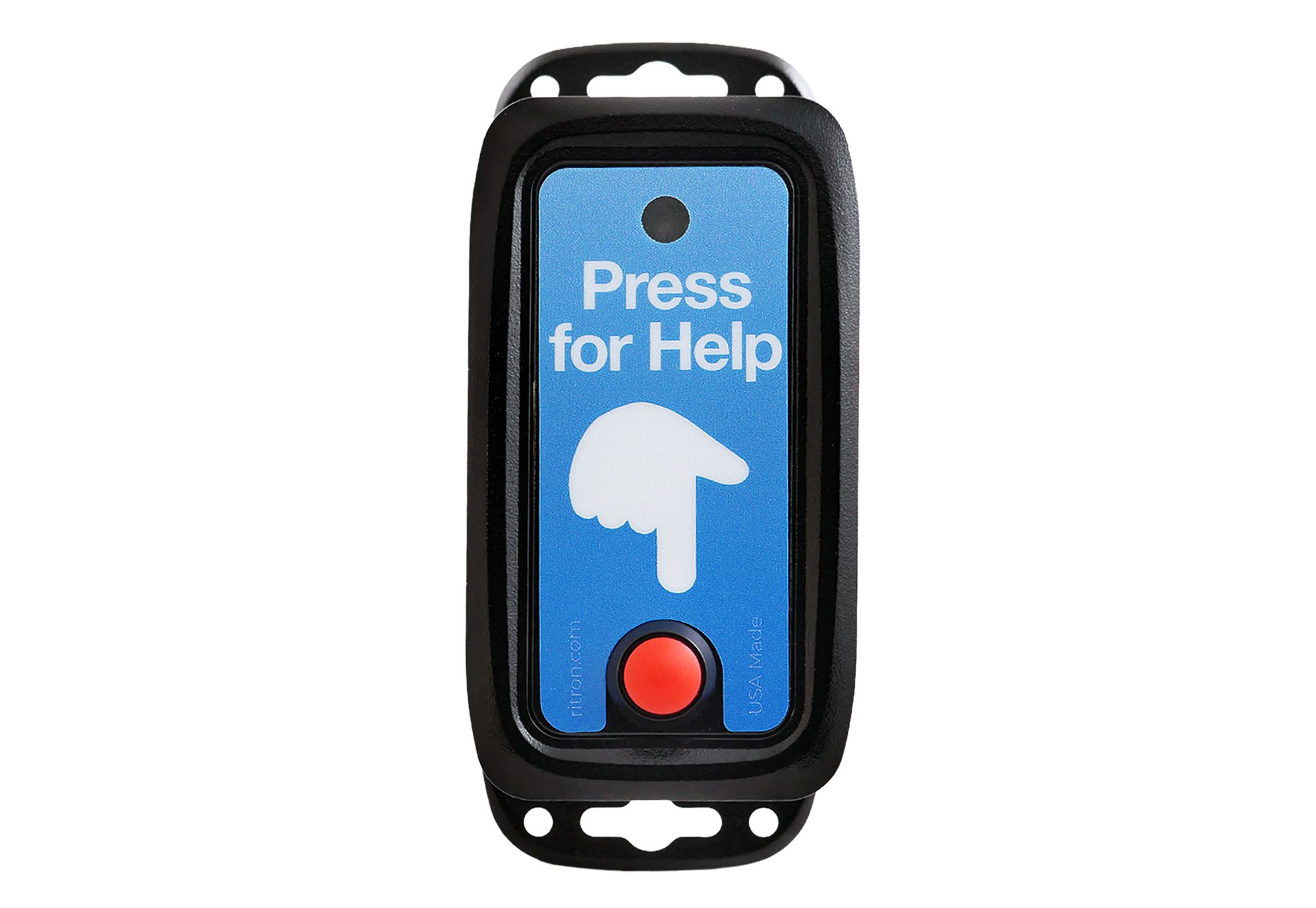

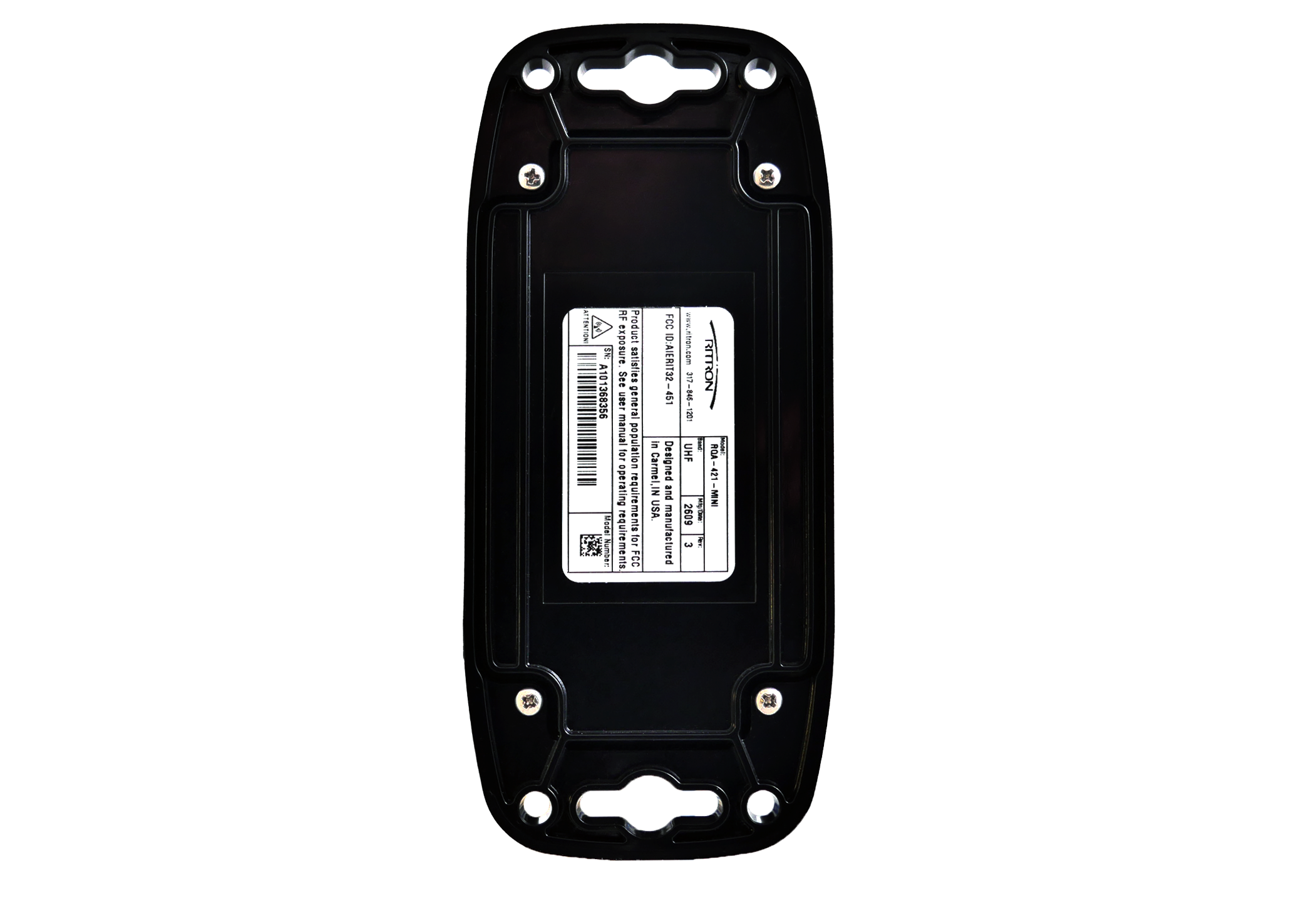

Ritron Mini Quick Assist® Wireless Call Button
Half the Size – Same Full-Size Performance
Available Q4 – The NEW Mini Quick Assist Wireless Call Button (Mini RQA) boasts the same proven performance and functionality as the standard Quick Assist in a more compact, low-profile footprint ½ the size. Compatible with other analog radio systems, the Mini Quick Assist delivers clear, customized prerecorded messages to radio-equipped personnel at the push of a button. Ideal for applications where mounting space is limited and a call button with a smaller footprint is needed. The Mini Quick Assist helps improve response times, increase staff efficiency, and will enhance the customer experience.
Key Benefits Include:
- Small, compact size for flexible deployment
- Increase customer satisfaction with quick response times
- Boost employee productivity
- Prevent merchandise loss
- No recurring fees or subscriptions
- Leverage your existing 2-way radios
- Customize alerts to notify radio-equipped staff where customers need assistance
- Wireless and battery-powered for quick and easy integration
- No Wi-Fi or IT infrastructure required
- Made in USA
Regulatory Approvals
VHF MURS, License-Exempt, FCC Part 95
VHF/UHF, License-Required, FCC Part 90
VHF/UHF, License-Required, ISED Industry Canada
UHF-GMRS, License-Exempt, ISED Industry Canada
UHF ETSI, For Europe
Custom Labels Available:
Places to use the Quick Assist Call Button:
Retail: View Retail Brochure
- High Value or High Theft Merchandise in Locked Cases
- Site-To-Store Pick-Up Areas (Buy Online, Pick-up In Store BOPIS)
- Areas that are not staffed full-time: Paint Counters, Material Cutting Stations, Automotive
- Fitting Rooms
- Question-Intensive Merchandise Areas
- Seasonal or Outdoor Departments – Lumber, Garden Center, Patio Funiture, LP Tanks
- Heavy or Out-of-Reach Merchandise Areas
- Will Call Counters
Manufacturing:
- Part Cages
- Assembly lines to call for parts or notify of machine failure
- First Aid Stations or Eye-Wash Stations
- Closed or Secure area
Healthcare:
- Nurse Call for Out Patience or Specialty Offices
- Panic Buttons at Cocierge’s or Information Desk
- Valet Parking
- Secured areas, loading docks
Other Applications:
- Car Washes – vacuum stations, vending machines
- Amusement Parks
- Indoor Family Dining & Entertainment
- Travel Centers, Truck Stops, Convenience Stores
- Small, Compact Design
- Frequency Band Models Available:
- VHF MURS, License-Free
- VHF, License-Required 150-165MHz
- UHF License-Required 450-470MHz
- UHF GMRS, License-Required
- UHF ETSI, Europe
- Transmits message immediately and directly to analog business band 2-way radios
- Battery-powered (Non-rechargeable CR-123A Lithium Cells), no wiring, flexible installation
- Multi-Channel/Frequency Capable
- Automatic low battery message
- Easy-to-see signage; custom labeling available
- Custom recordable voice messages
- Total record time is 24 seconds
- Manager Escalation Feature: Automatically escalates unanswered assist requests by sending escalation alerts to additional staff or managers.
- Durable, water-resistant housing
- Field and PC Programmable
- Message transmission indicator LED
- Internal, no-tamper 1/4 wave antenna
- Large, easy-to-use call button
- Can be programmed for use with radio repeaters
- Coded Signaling: Encode CTCSS, DCS, DTMF, 3-7 tone SelCall
- Range: One-half mile, line-of-sight to a portable 2-way radio, or approximately 75,000 sq. ft.
| Model | Description |
|---|---|
| RQA-121-MINI | Quick Assist VHF, 150-165 MHz, 120mW TX, RQA-121-MINI with field programming |
| RQA-121M-MINI | Quick Assist VHF MURS, License-Free, 120mW TX, RQA-121-MINI with field programming |
| RQA-421-MINI | Quick Assist UHF, 450-470 MHz, 120mW TX, RQA-421-MINI with field programming |
| Model | Description |
|---|---|
| RQT-PCPK-2 | Programming Kit for the MINI RQA, allows full access to ALL features and functions (Includes cable 60201119 and USB Thumb Drive software) |
| RQT-PCPS-2 | Full access programming software on USB Thumb Drive ONLY |
| RQT-BASIC-PCPS-1 | Basic Programming Software for the MINI RQA, allows limited access to features and functions (FREE download www.ritron.com/tools) |
| 60201119 | 5-pin USB to mini USB programming cable, connects RQA or RQT to PC |
Retail:
- High Value or High Theft Merchandise in Locked Cases
- Site-To-Store Pick-Up Areas (Buy Online, Pick-up In Store BOPIS)
- Areas that are not staffed full-time: Paint Counters, Material Cutting Stations, Automotive
- Fitting Rooms
- Question-Intensive Merchandise Areas
- Seasonal or Outdoor Departments – Lumber, Garden Center, Patio Funiture, LP Tanks
- Heavy or Out-of-Reach Merchandise Areas
- Will Call Counters
Manufacturing
- Part Cages
- Assembly lines to call for parts or notify of machine failure
- First Aid Stations or Eye-Wash Stations
- Closed or Secure area
Healthcare
- Nurse Call for Out Patience or Specialty Offices
- Panic Buttons at Cocierge’s or Information Desk
- Valet Parking
- Secured areas, loading docks
Other Applications
- Car Washes – vacuum stations, vending machines
- Amusement Parks
- Indoor Family Dining & Entertainment
- Travel Centers, Truck Stops, Convenience Stores
