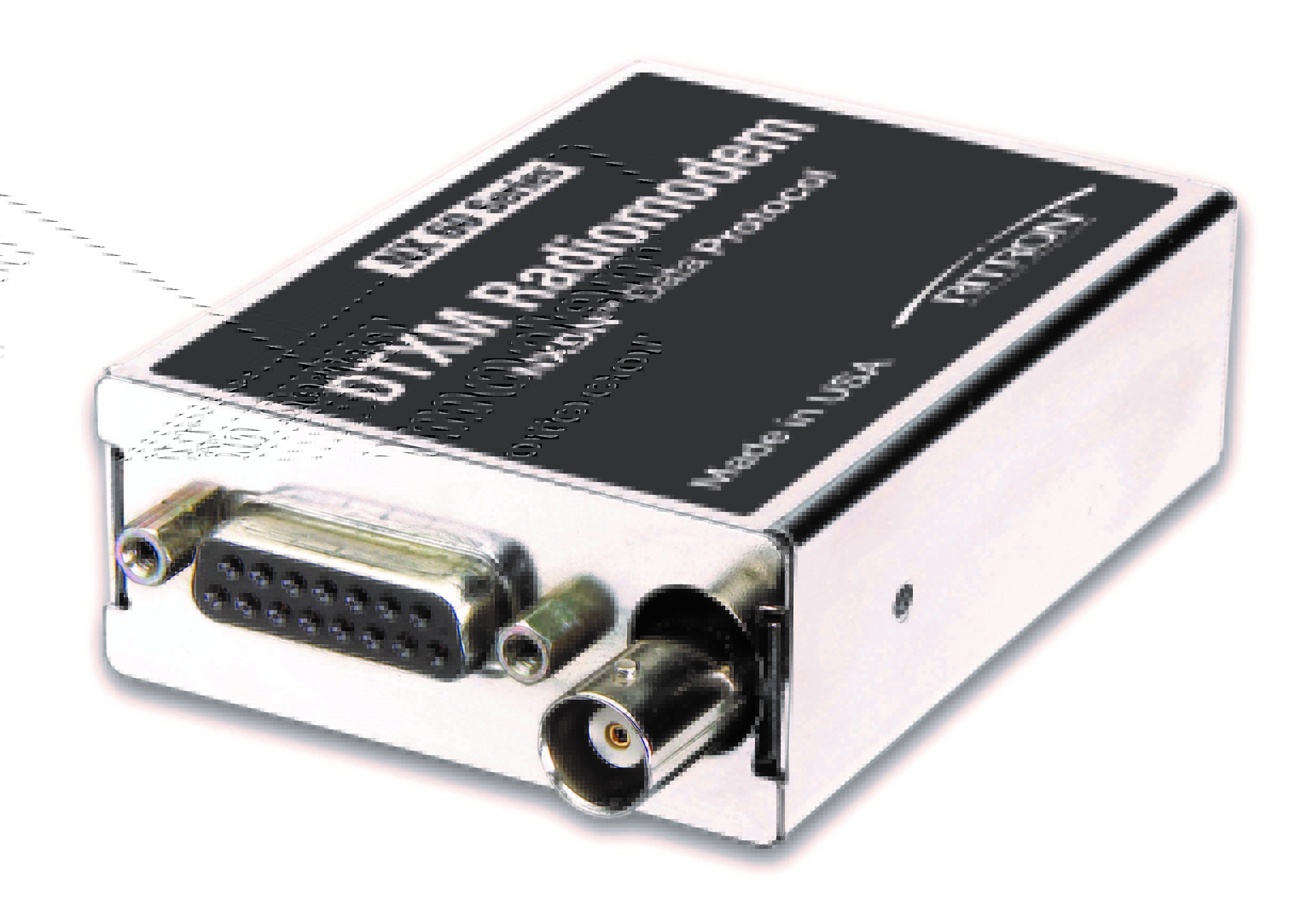

DTXM NX Series Radio Modem Transceiver NXDN® data only Protocol

Radio Modems and Digital Transceivers
NXDN Data Only Protocol

Coming Soon!  The 60 series NXDN™ radiomodem is the next generation in the high performance DTXM Wireless Modem family. The NXDN DTXM is protocol compatible with the NXDN date protocol and is compatible with Kenwood’s Transparent Date Mode. The radiomodem will support over-the-air data rates of 9600 bps in a 12.5 kHz channel or 4800 bps in a 6.25 kHz channel (separate models). High specifications permit integration into systems demanding the utmost performance in congested frequency environments and is ideal for use in systems where refarming compliant narrow band frequencies have been assigned, and where the robust NXDN data protocol is desired. The complete modem and transceiver occupies the same small foot print, 3.6”L x 2.3”W x 1.0”H, as previous DTXM models and DTX+ transceivers. This results in a small, compact package that is easy to integrate into new systems or retrofit into existing systems. Direct modulation with low distortion and low group delay result in a low bit-error rate (BER) for enhanced system integrity and reliability. The NXDN radiomodem retains the same Swift LockTM synthesizer loading algorithm as previous DTXM’s and the DTX+ transceiver for transmit and receive attack times of 10ms or less for high-speed data throughput. Controlled EnvelopeTM keying reduces adjacent channel “keyclicks” resulting in spectrum-friendly operation. If dependability, reliability, and low-cost are important factors in selecting your RF data requirements, call Ritron at 800-USA-1-USA (800-872-1-872).

Download PDF
