GateGuard ® Wireless Access Control System
GateGuard ® Wireless Access Control System
The GateGuard system is a package of pre-programmed radios designed to provide an out-of-the-box solution for long-range, 2-way voice communication and remote access control.
Keep gated areas secure, without compromising your ability to communicate long range. Rugged, industrial-grade system enables long-range [measured in miles-not feet] wireless 2-way voice communication, while also providing remote access control of gates or mag lock activated doors.
Use Ritron 2-way portable radios or desk-top base station radios to communicate to callboxes and other radio-equipped personnel around your facility.
Easy to install, no trenching required, and cost-effective!
The GateGuard package includes:
- HD Series Radio Callbox
- Portable Radio
- JBS Desk-Top Base Station Radio.
*Up to one mile line-of-sight, no obstructions. Robust, industry-proven technology provides 5X more range than other wireless products commonly used in the access control market. No air-time or monthly cell phone charges.
- Bundled system package of pre-programmed radios provides out-of-the-box wireless access control solution
- Includes: HD Series Callbox (optional entry keypad model available), Ritron 2-Way Portable Radio, and JBS Series Desk-Top 2-Way Base Station Radio.
- Long-range communication [up to 2 miles line-of-sight] from gate to radio-equipped personnel, 5X more range Than other wireless technologies.
- No Air-Time or Monthly Cell Phone Charges.
- No Trenching Required
- Easy Installation
- Weatherproof and Tamper Resistant Callbox
- VHF MURS “License-Free Business Only” Model & VHF And UHF “License-Required Business Only” Models Available
- Alkaline Battery Powered or External Power Capable (optional RPS-EXPO AC adapter)
- PC and Field Programmable
- Works With Most Other VHF MURS (License-Free), VHF or UHF (License-Required) Business Band Frequency Technology
The bundled GateGuard® system package includes the following products:

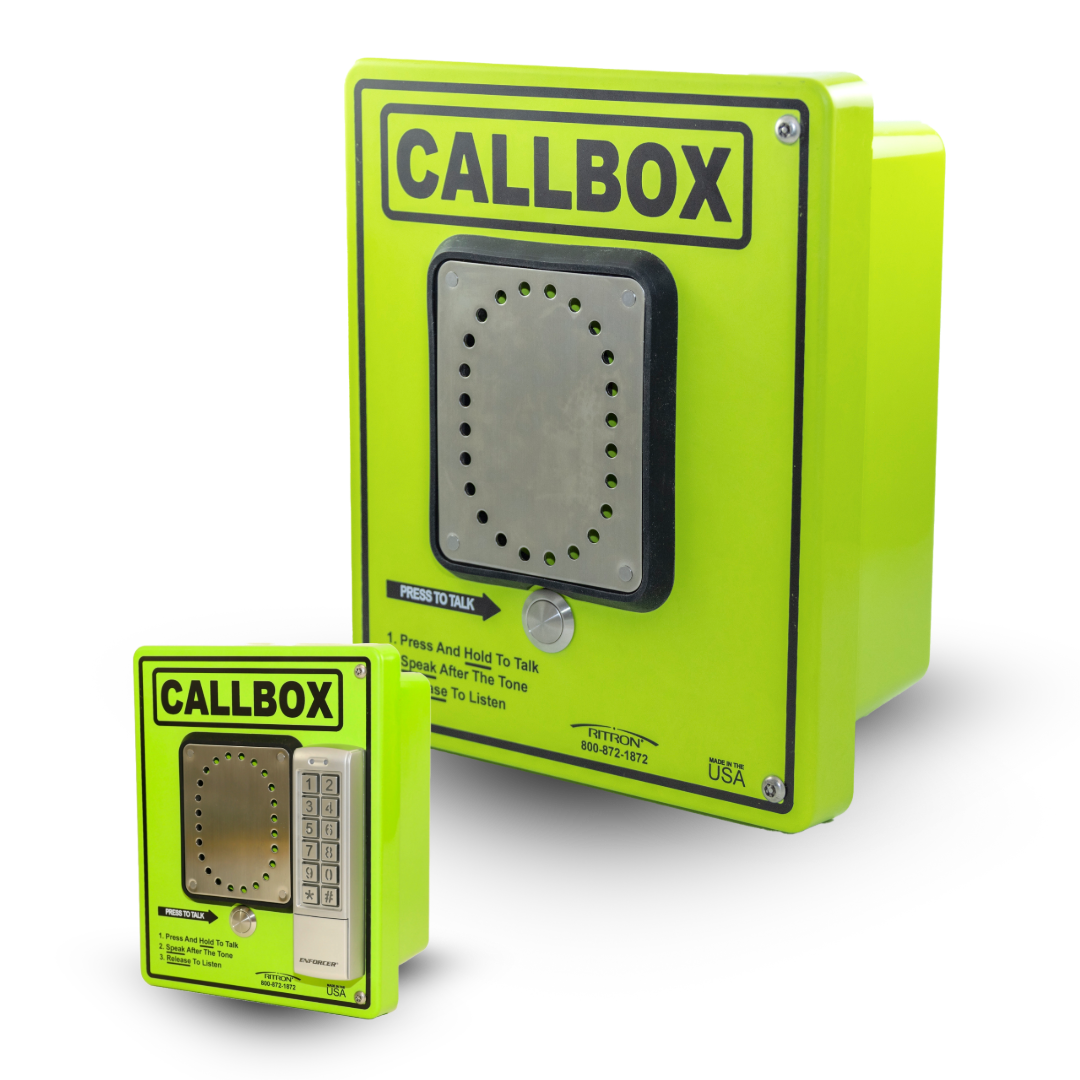

- HD Series Callbox (optional entry keypad model available)
- ENTRY KEYPAD: Mounts to callbox faceplate (special order). Connects to controller via hardwire connection.
- JBS Series Desk-Top 2-Way Base Station Radio w/ JBS MMK Mounting Bracket
- Ritron 2-Way Portable Radio
- RAM-1545: VHF/UHF, Dual band, magnetic mount antenna, unity gain, 25 feet of cable, BNC connector
- RAM-45: UHF Magnetic mount antenna, unity gain, 12 feet of cable, BNC connector
- R-STROBE: Blue Strobe Light, 120VAC, 1 Amp (Peak 4 Amp). Can be used with 6 or 7 Series. Automatically turns on when callbox PTT button is activated.
- RPS-EXPO: External power supply cube, rated for indoor use only, 110VAC to 13VDC.
- Manufacturing Facilities
- Construction Sites
- Convenience Stores
- Storage Facilities
- Camps
- Warehouses
- Access Control
